The first two digits are the spray angle. The last digits are the water use in L/min, or the foam volume for foam nozzles. A 25/30 rinsing nozzle sprays at 25 degrees and uses 30 L/min.
Accessories.
Hoses, nozzles, lances and fittings that fit every Foamico system. Find the part, check the item number, and ask us if it is not on the list.
Every part. One place.
Filter by type, or search for a name or an item number.
Hoses

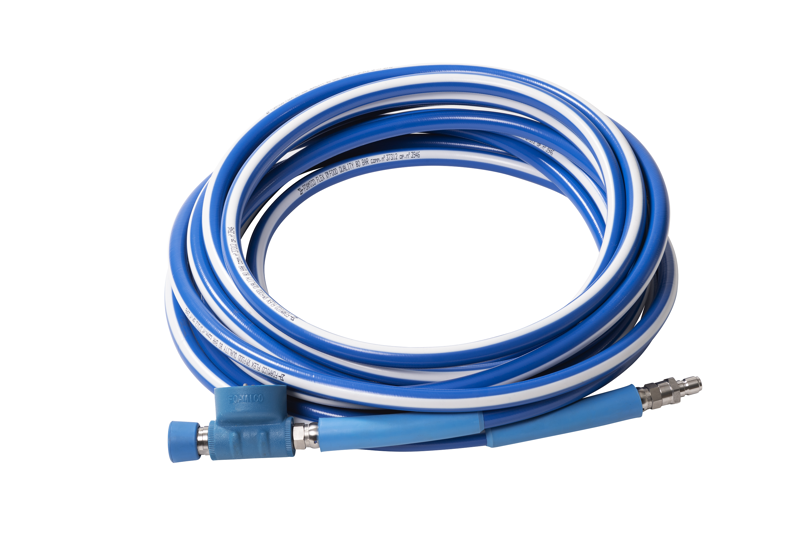

Foamico DuraLine hose
Durable and flexible, with stainless steel press couplings and ½" outer thread. -20 to +70 °C, up to 80 bar at 20 °C.
7800544 1.5 m DuraLine hose
7800545 2.5 m DuraLine hose
7800546 5 m DuraLine hose
7800547 10 m DuraLine hose
7800548 15 m DuraLine hose
7800549 20 m DuraLine hose
7800550 25 m DuraLine hose
7800551 30 m DuraLine hose
7800552 35 m DuraLine hose
7800553 40 m DuraLine hose
7800554 100 m DuraLine hose
Hoses

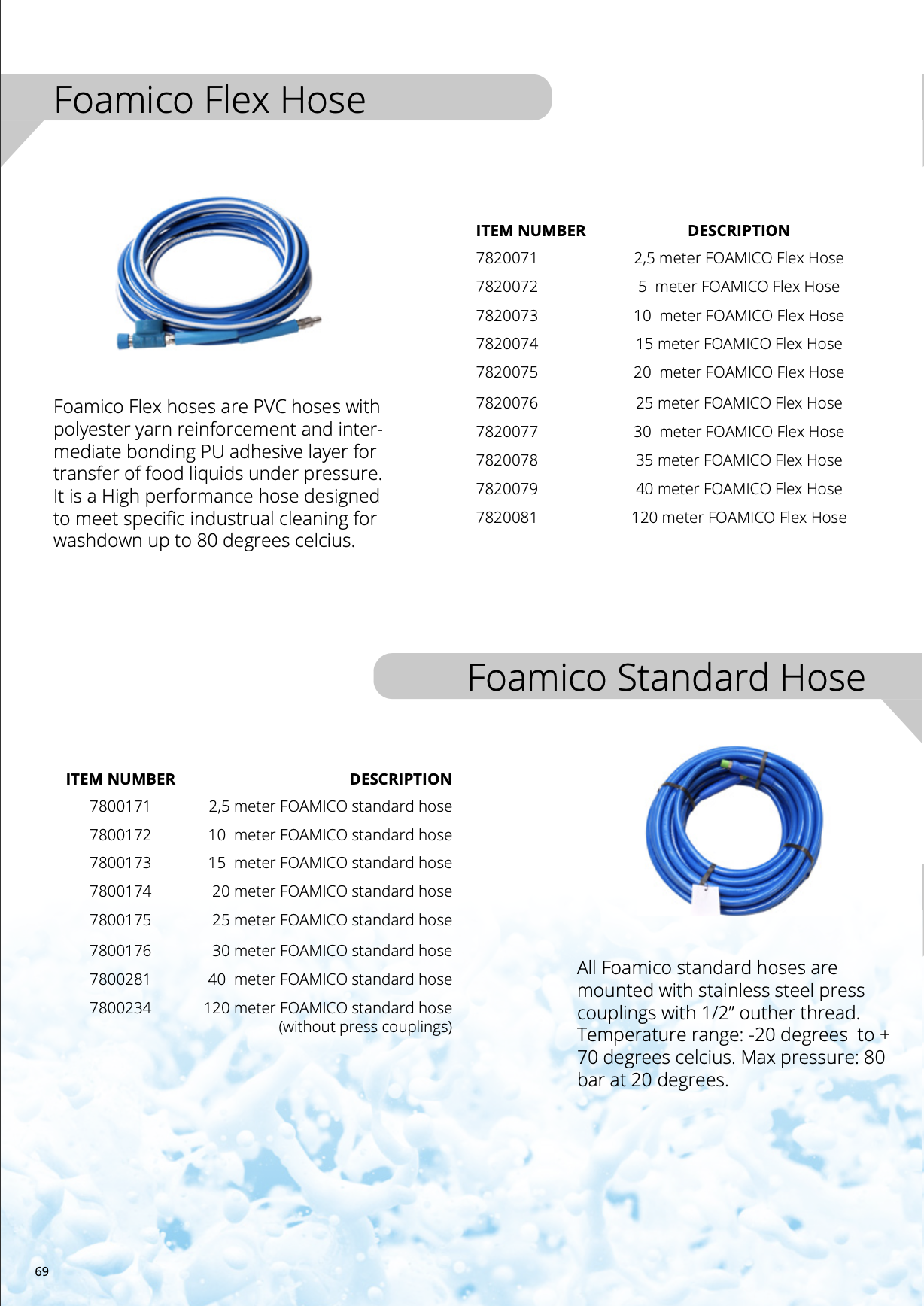

Standard hose
Our standard hose with stainless steel press couplings and ½" outer thread.
7800171 2.5 m standard hose
7800172 10 m standard hose
7800173 15 m standard hose
7800174 20 m standard hose
7800175 25 m standard hose
7800176 30 m standard hose
7800281 40 m standard hose
7800234 120 m standard hose, without press couplings
Hoses

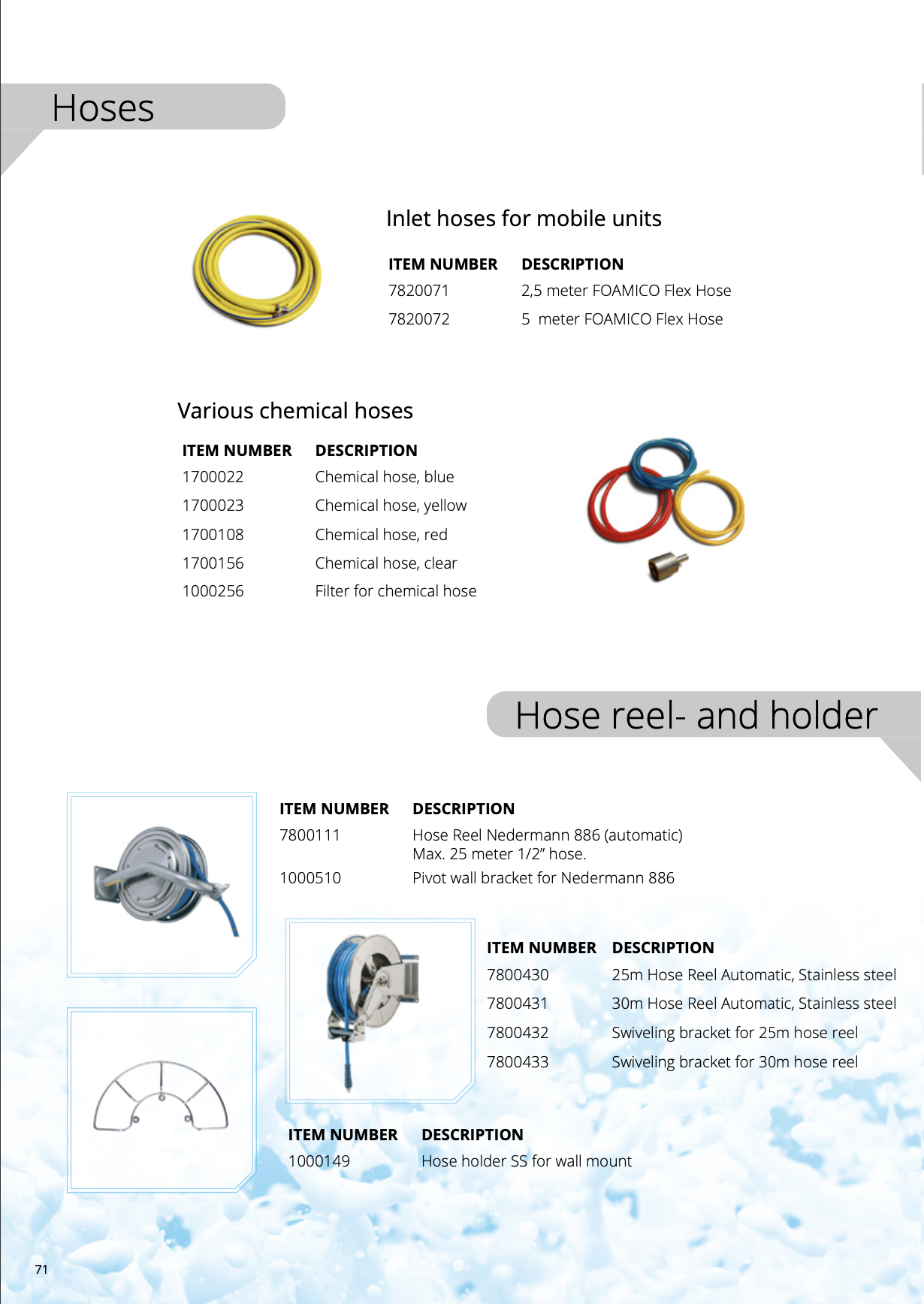

Inlet hoses for mobile units
Flexible inlet hoses for Mobile Units and Mobile Satellites.

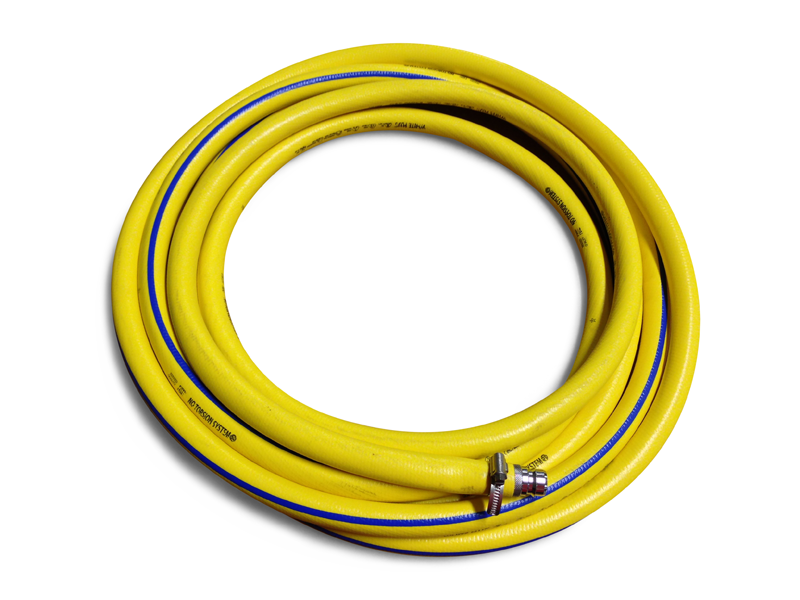

7800112 ¾" inlet hose, 10 m
7800291 1" inlet hose, 10 m
Hoses

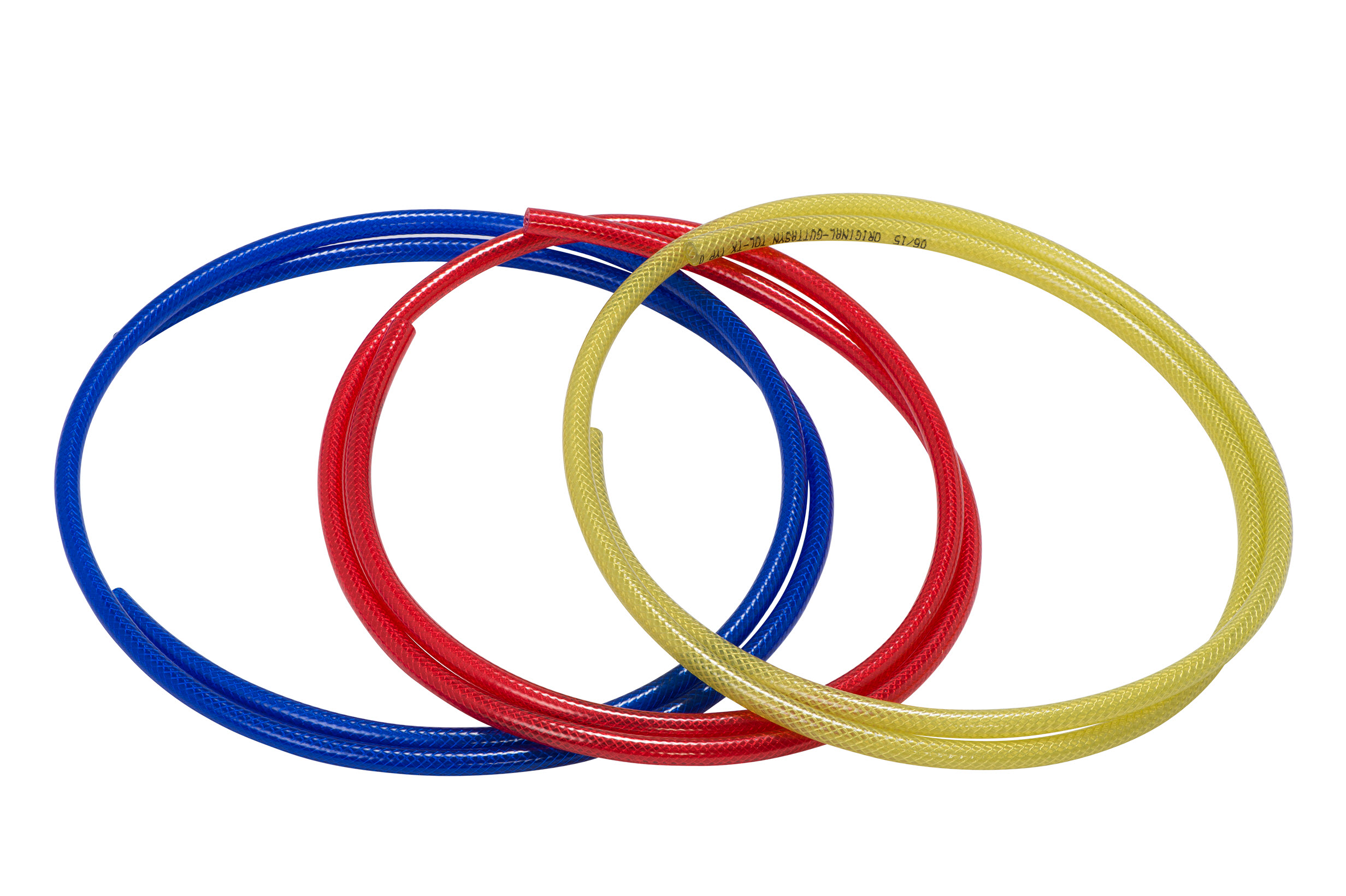

Chemical hoses
Colour coded suction hoses, so each chemical has its own colour.
1700022 Chemical hose, blue
1700023 Chemical hose, yellow
1700108 Chemical hose, red
1700156 Chemical hose, clear
1000256 Chemical hose filter
Guns and valves

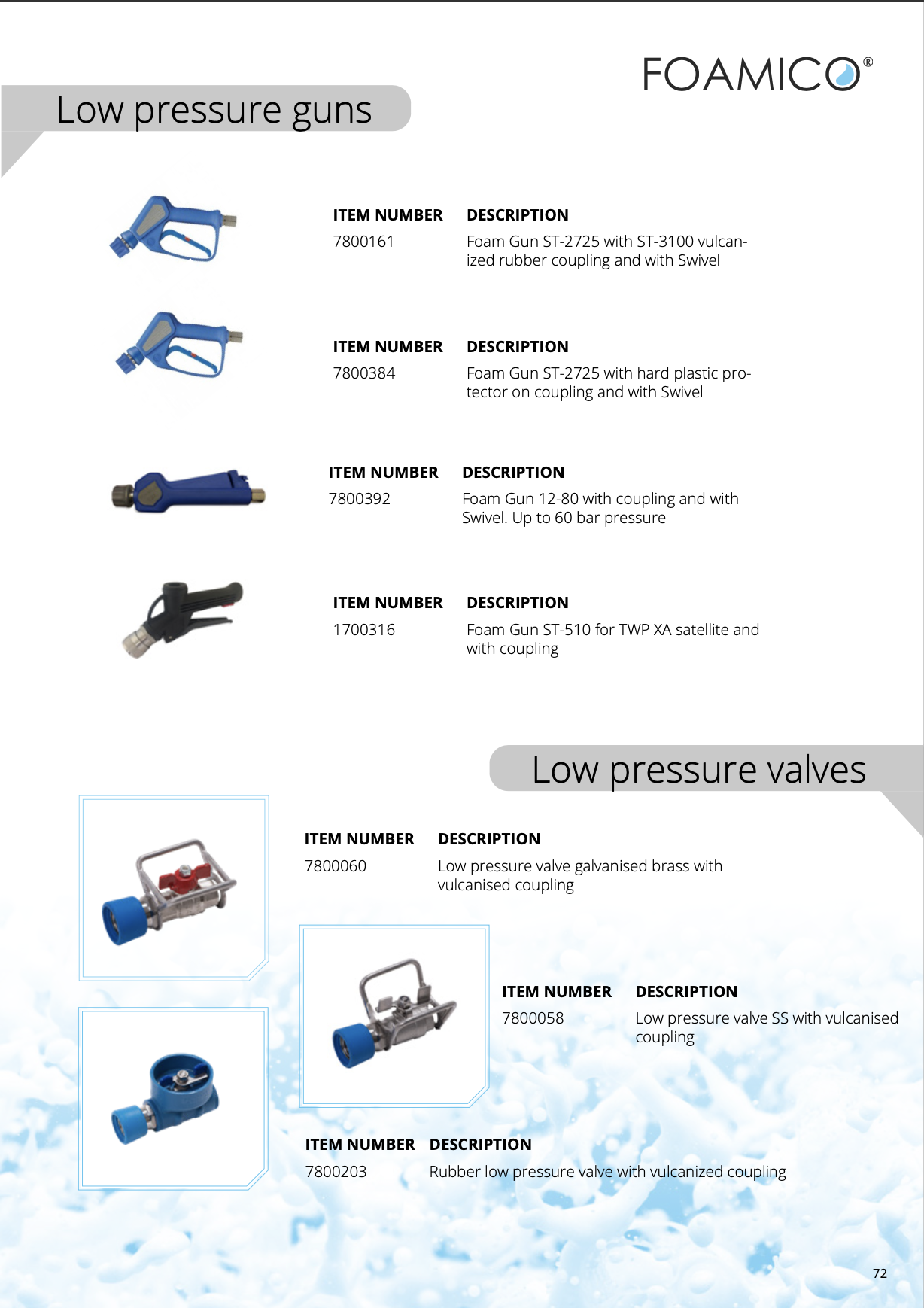

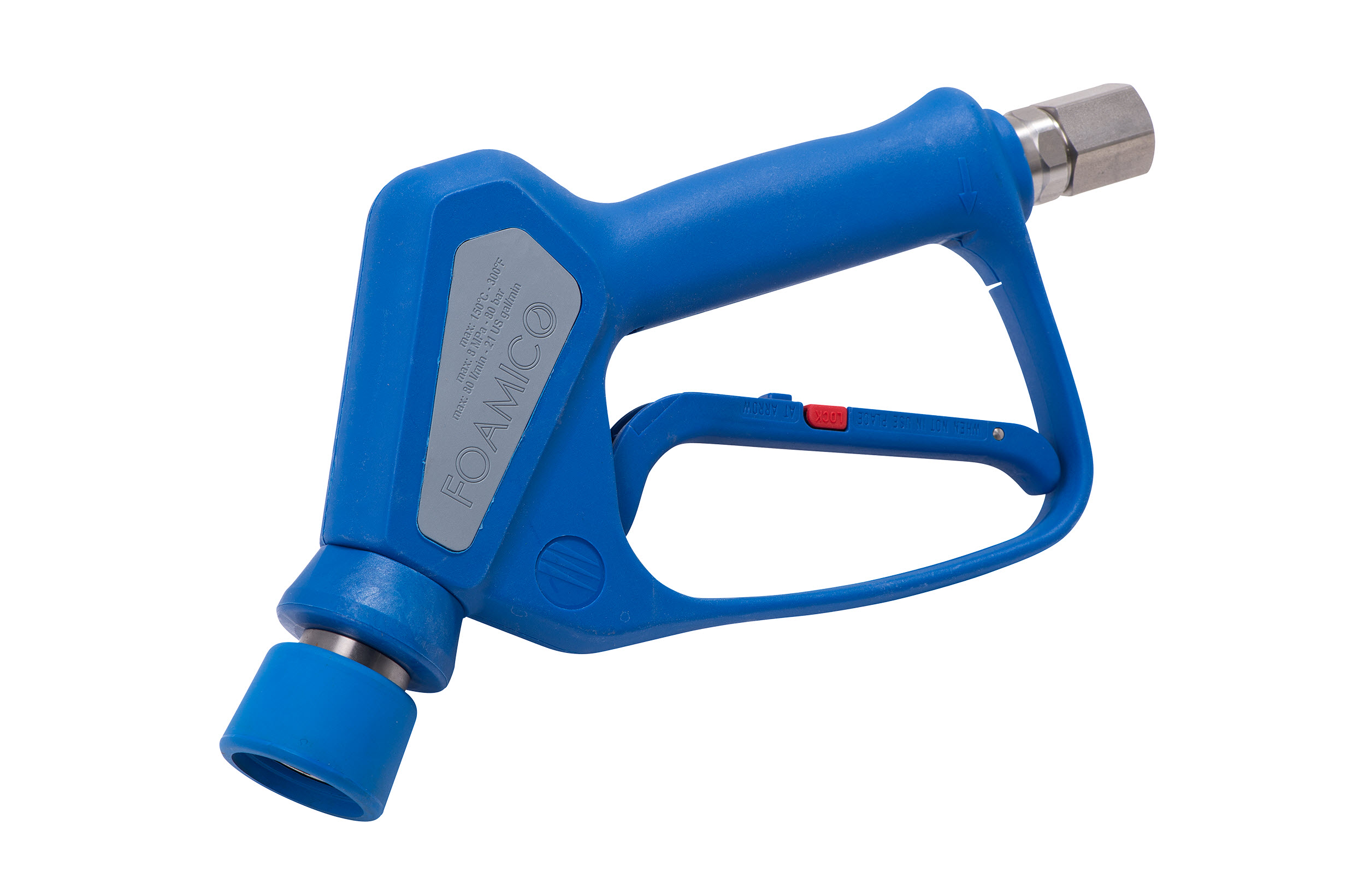

Low pressure guns
Foam guns with swivel for daily low-pressure cleaning.
7800161 Foam gun ST-2725, vulcanised rubber coupling, with swivel
7800384 Foam gun ST-2725, hard plastic protector, with swivel
7800392 Foam gun 12-80 with coupling and swivel, up to 60 bar
1700316 Foam gun ST-510 for TWP XA Satellite, with coupling
Guns and valves
Low pressure valves
Valves in stainless steel or rubber, with vulcanised coupling.

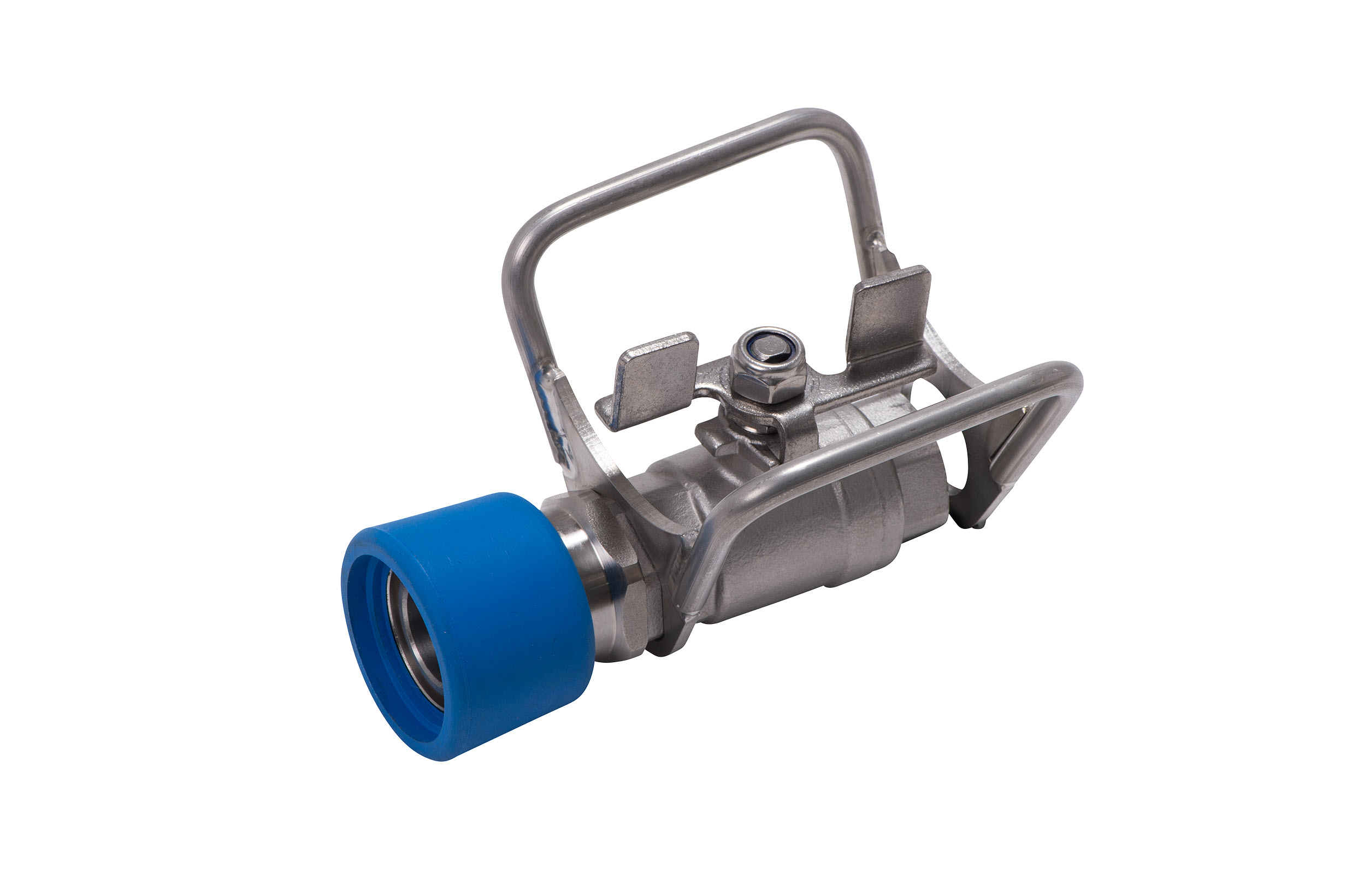

7800058 Low pressure valve, stainless steel, vulcanised coupling
7800203 Low pressure valve, rubber, vulcanised coupling
Nozzles

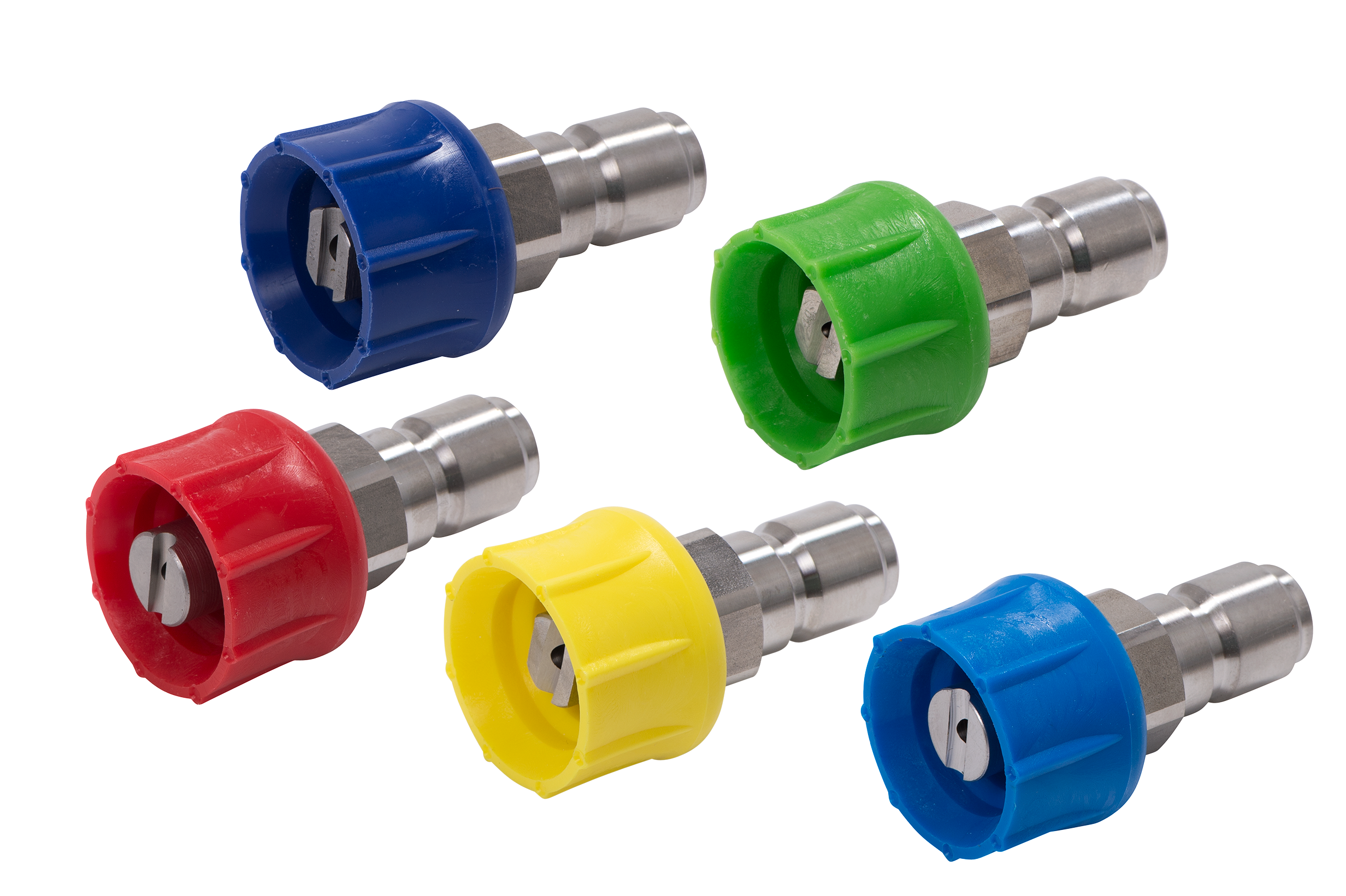

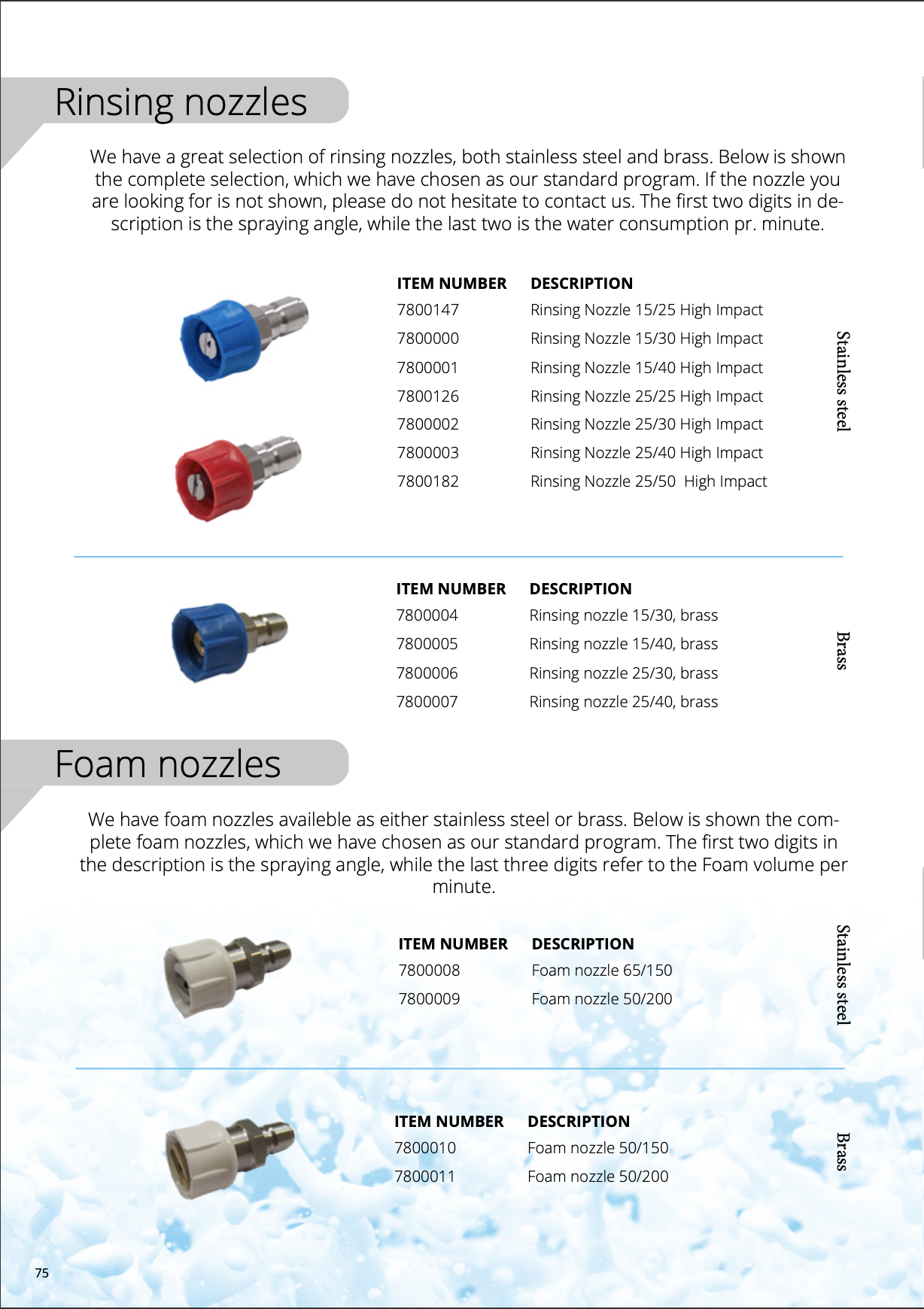

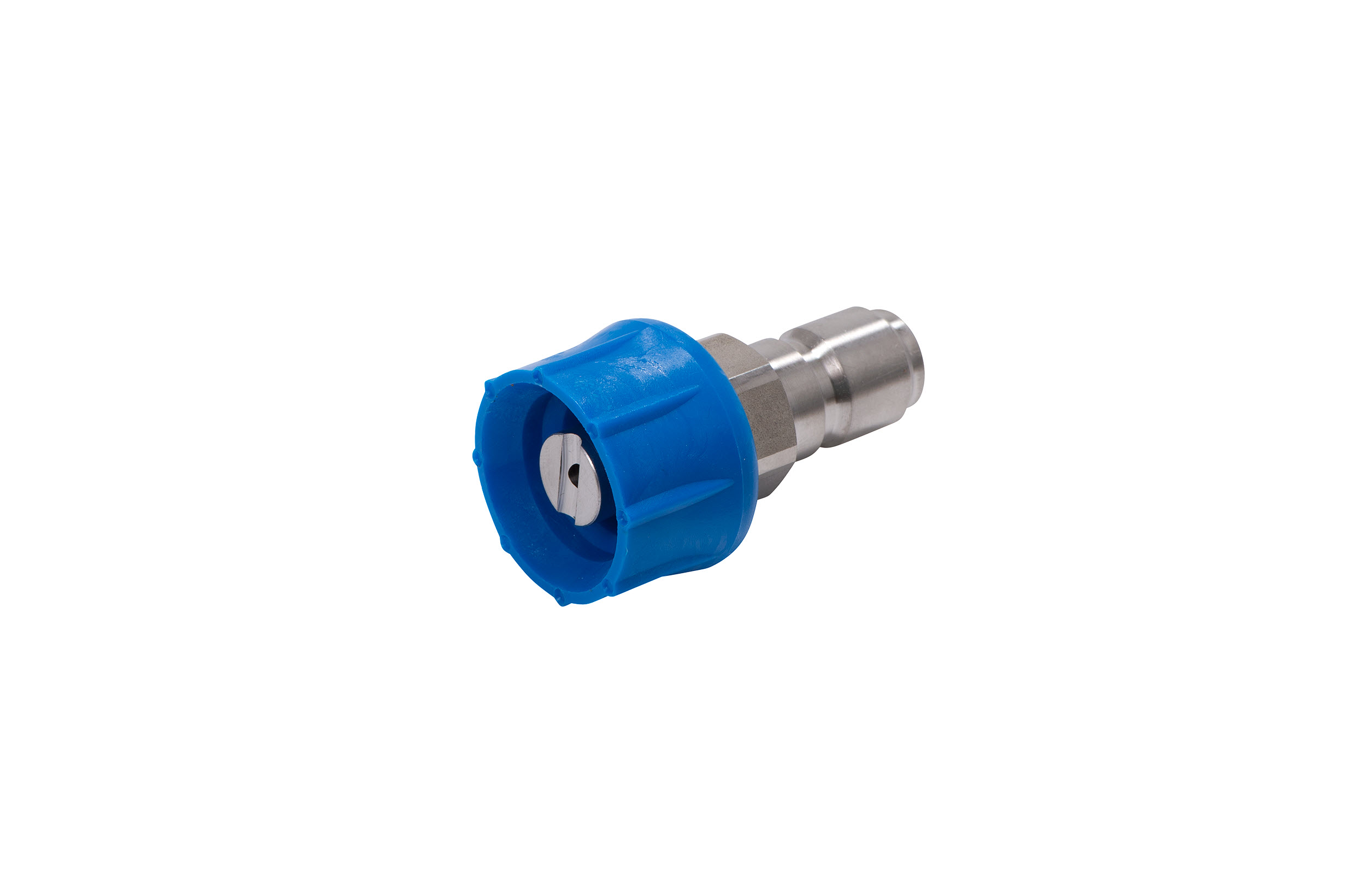

Rinsing nozzles
Stainless steel, high impact. The first two digits are the spray angle, the last two the water use in L/min.
7800147 Rinsing nozzle 15/25
7800000 Rinsing nozzle 15/30
7800001 Rinsing nozzle 15/40
7800126 Rinsing nozzle 25/25
7800002 Rinsing nozzle 25/30
7800003 Rinsing nozzle 25/40
7800182 Rinsing nozzle 25/50
Nozzles

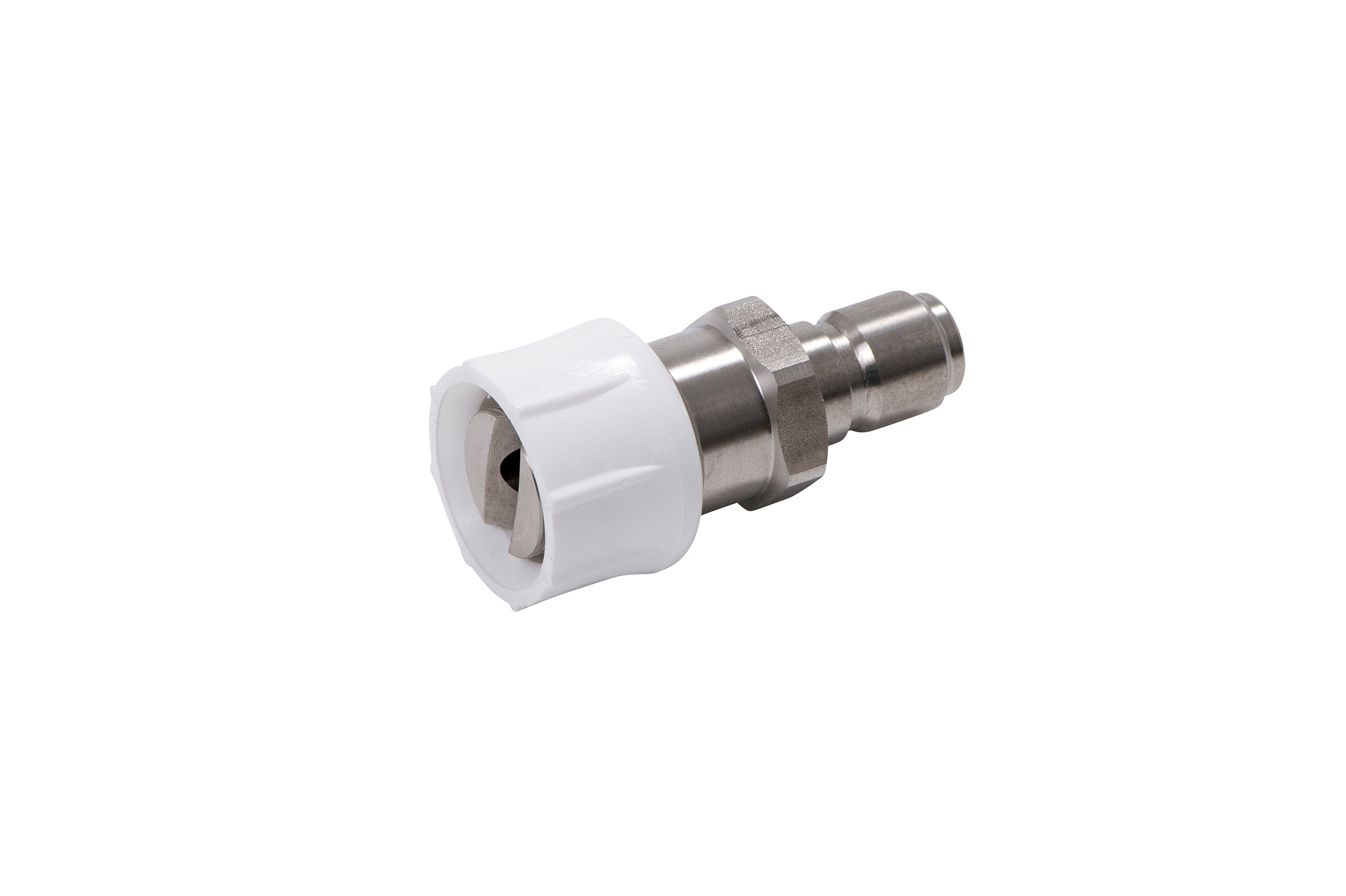

Foam nozzles
Stainless steel. The first two digits are the spray angle, the last three the foam volume per minute.
7800008 Foam nozzle 65/150
7800009 Foam nozzle 50/200
Nozzles

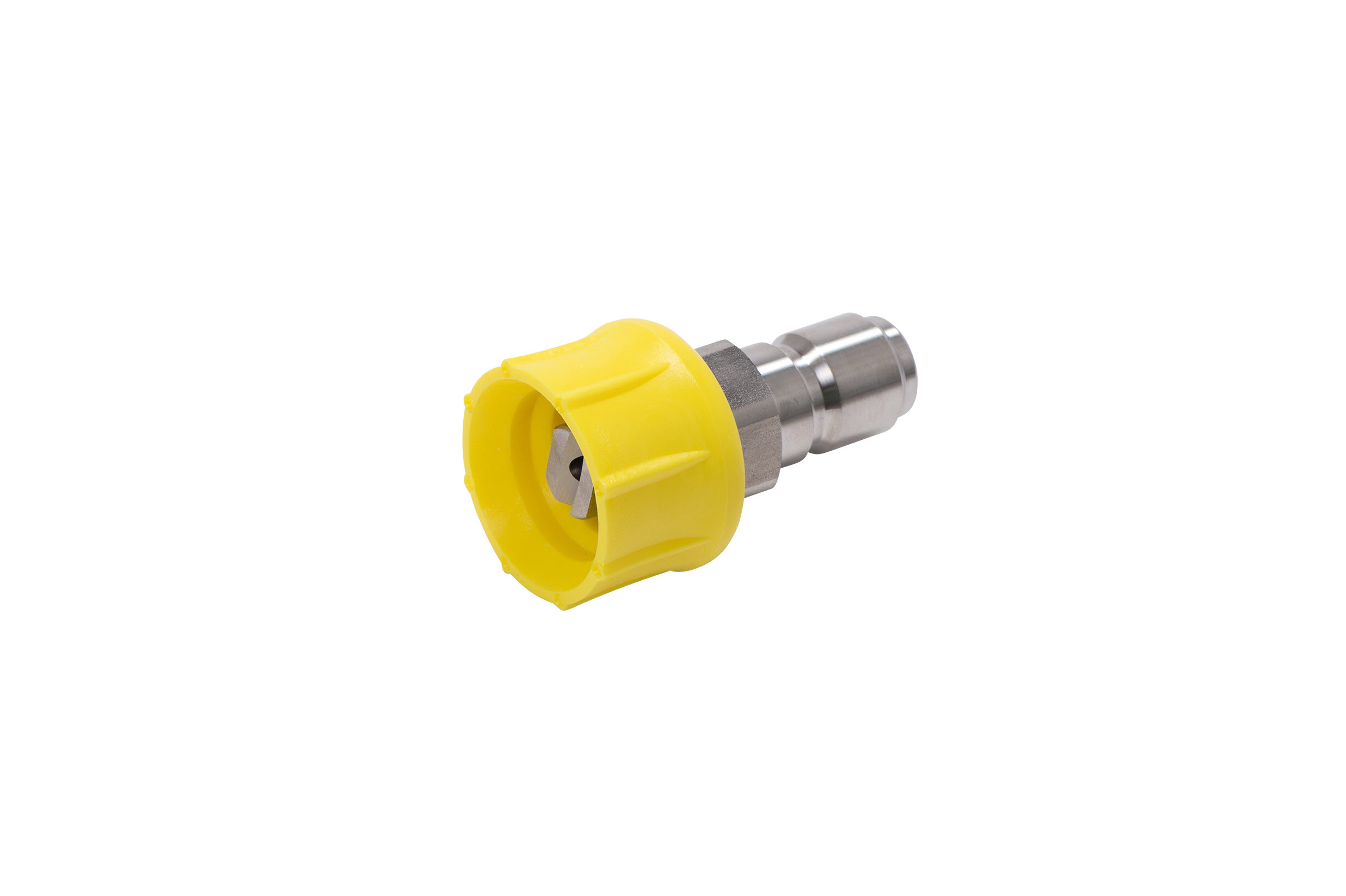

Disinfection nozzles
Stainless steel only. The first two digits are the spray angle, the last two the water use in L/min.
7800012 Disinfection nozzle 40/30
7800013 Disinfection nozzle 50/30
Nozzles

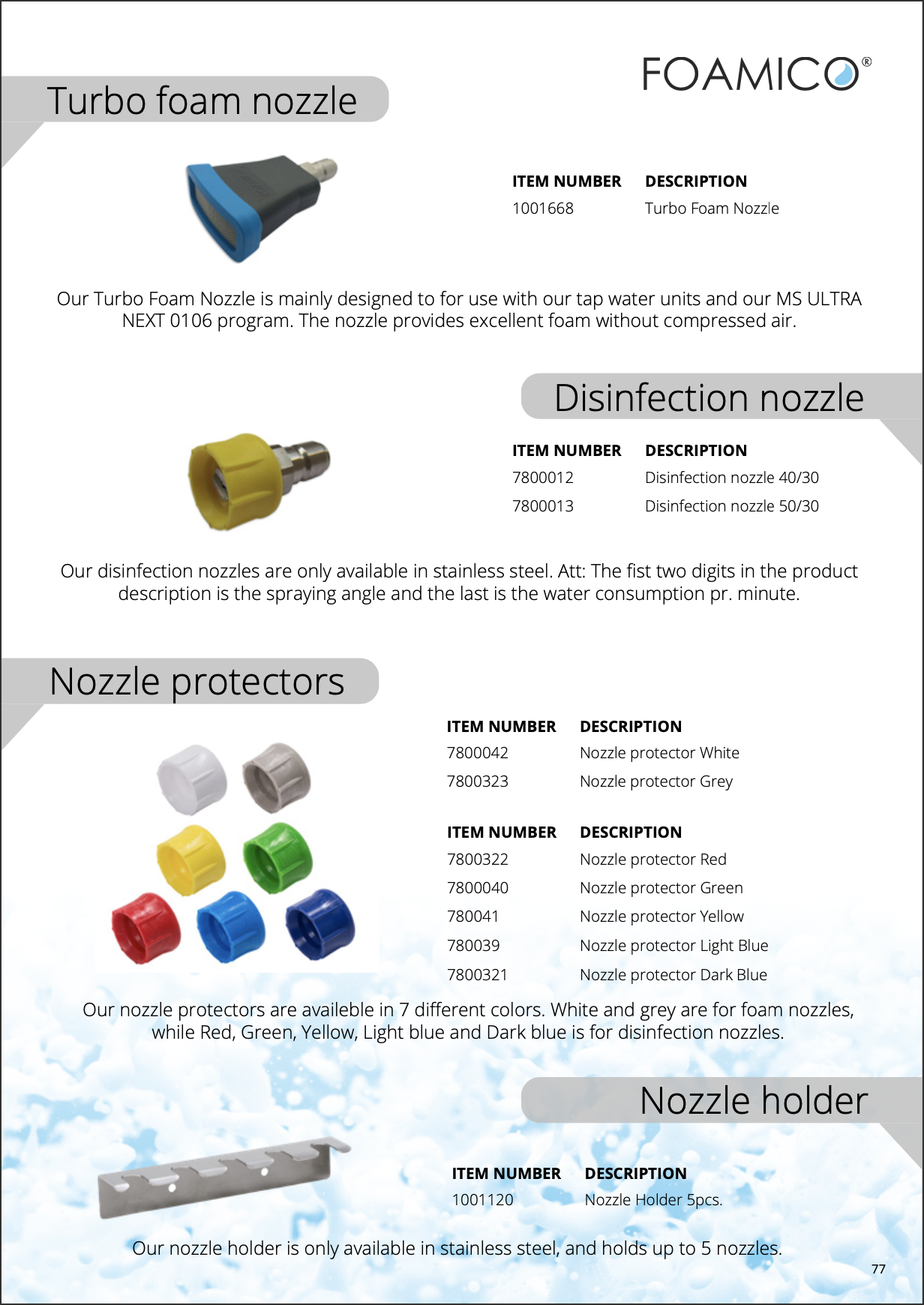

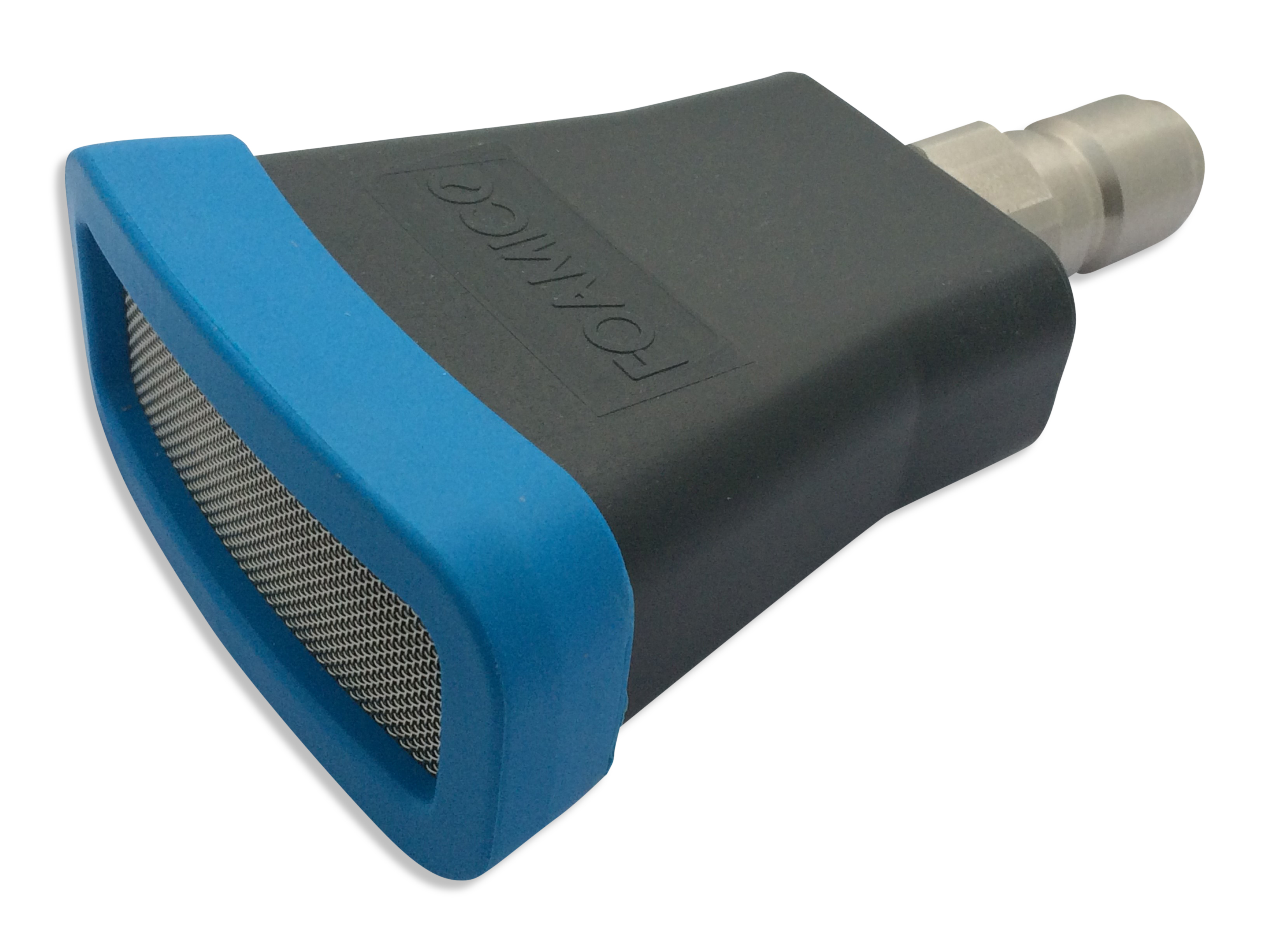

Turbo Foam Nozzle
Excellent foam without compressed air. Made for tap water units and the MS ULTRA NEXT 0106.
1001668 Turbo Foam Nozzle
Nozzles

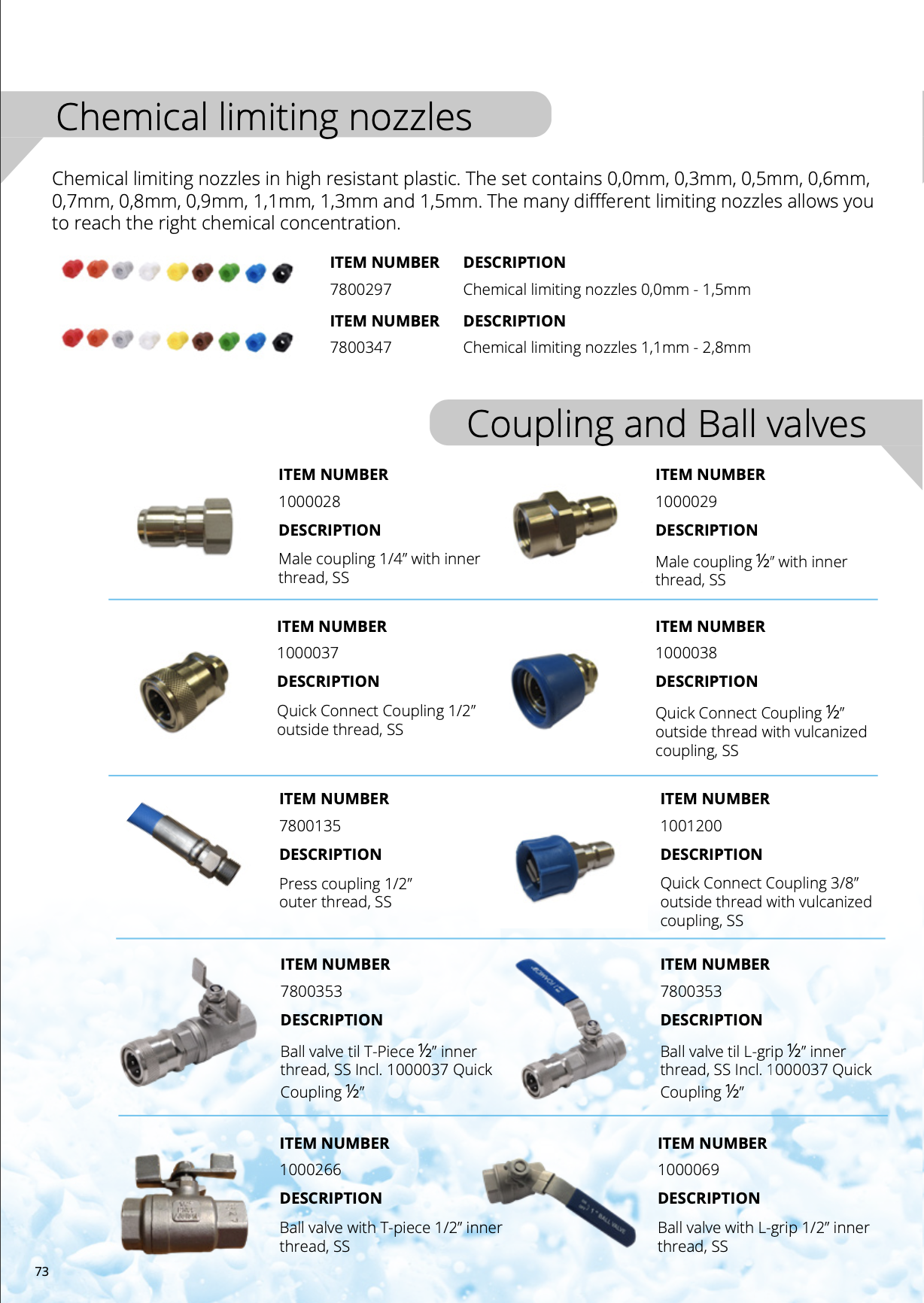

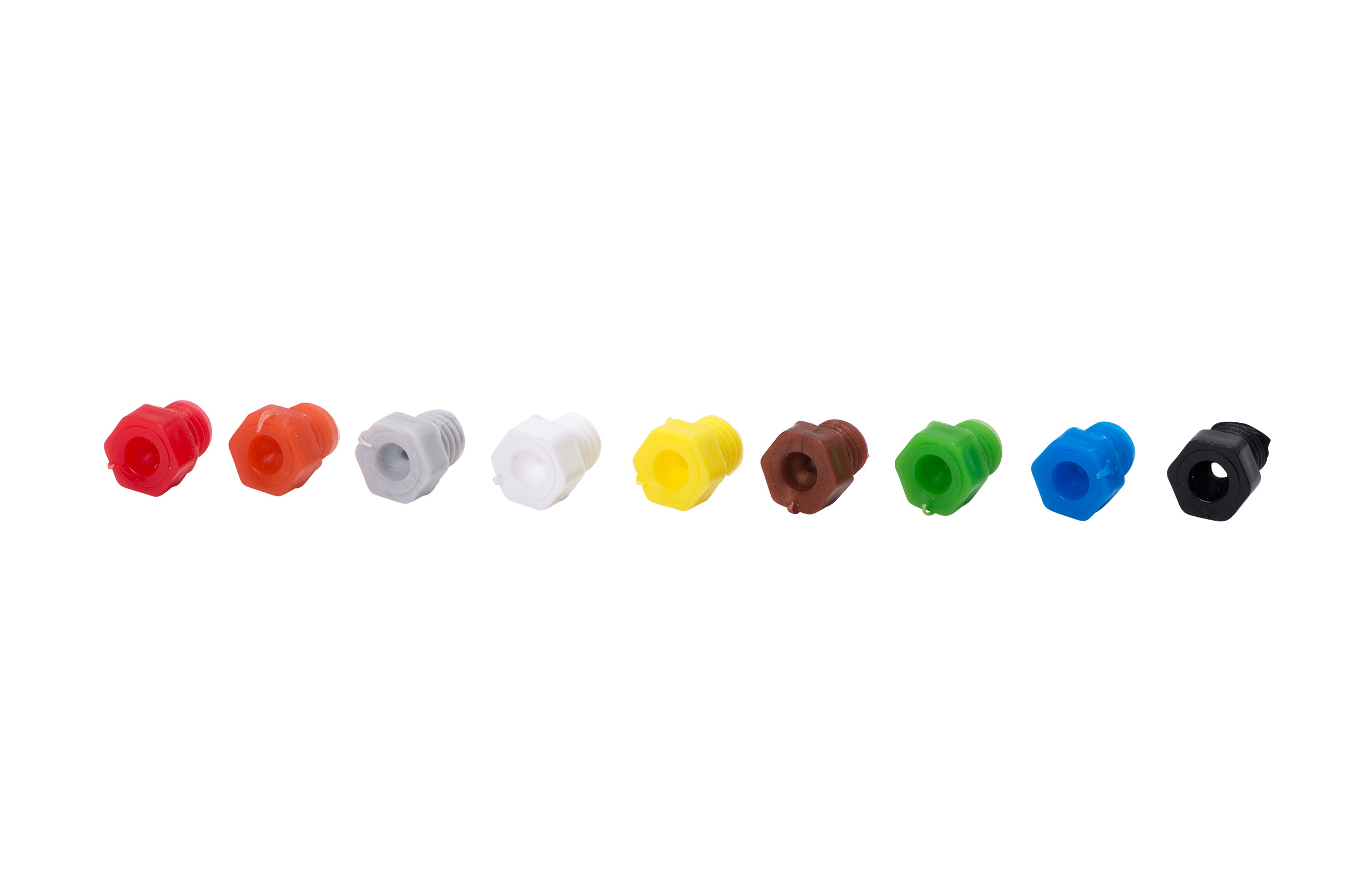

Chemical limiting nozzles
Set the chemical concentration exactly. Chemical resistant plastic, ten sizes per set.
7800291 Chemical limiting nozzles, 0.0 to 1.5 mm
7800347 Chemical limiting nozzles, 1.1 to 2.8 mm
Nozzles

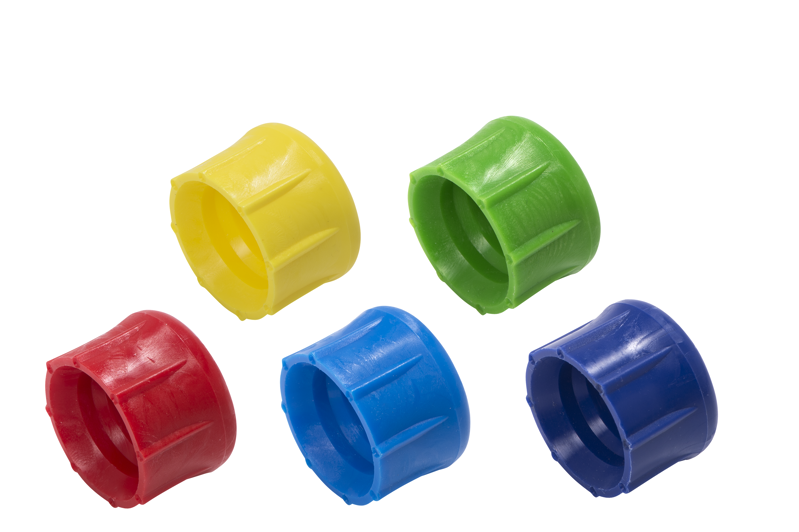

Nozzle protectors
Colour code your nozzles. White and grey for foam, red, green, yellow and blue for disinfection.
7800042 Nozzle protector, white
78000323 Nozzle protector, grey
78000322 Nozzle protector, red
780040 Nozzle protector, green
780041 Nozzle protector, yellow
780039 Nozzle protector, light blue
78000321 Nozzle protector, dark blue
Lances

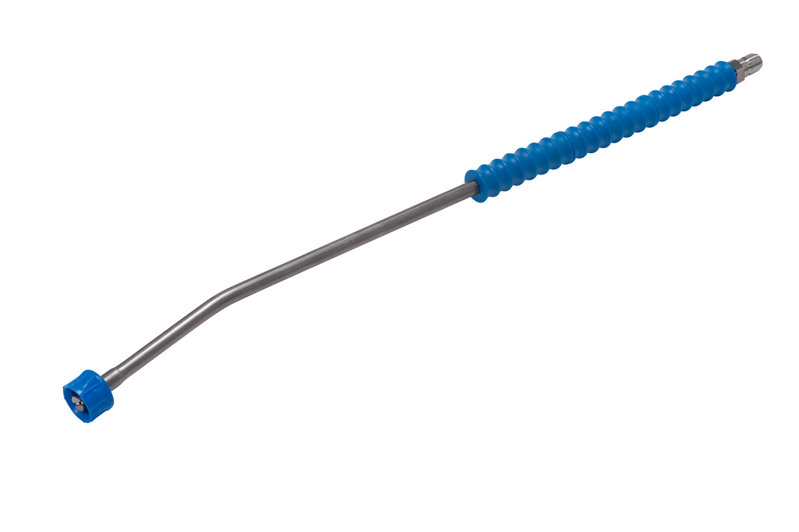

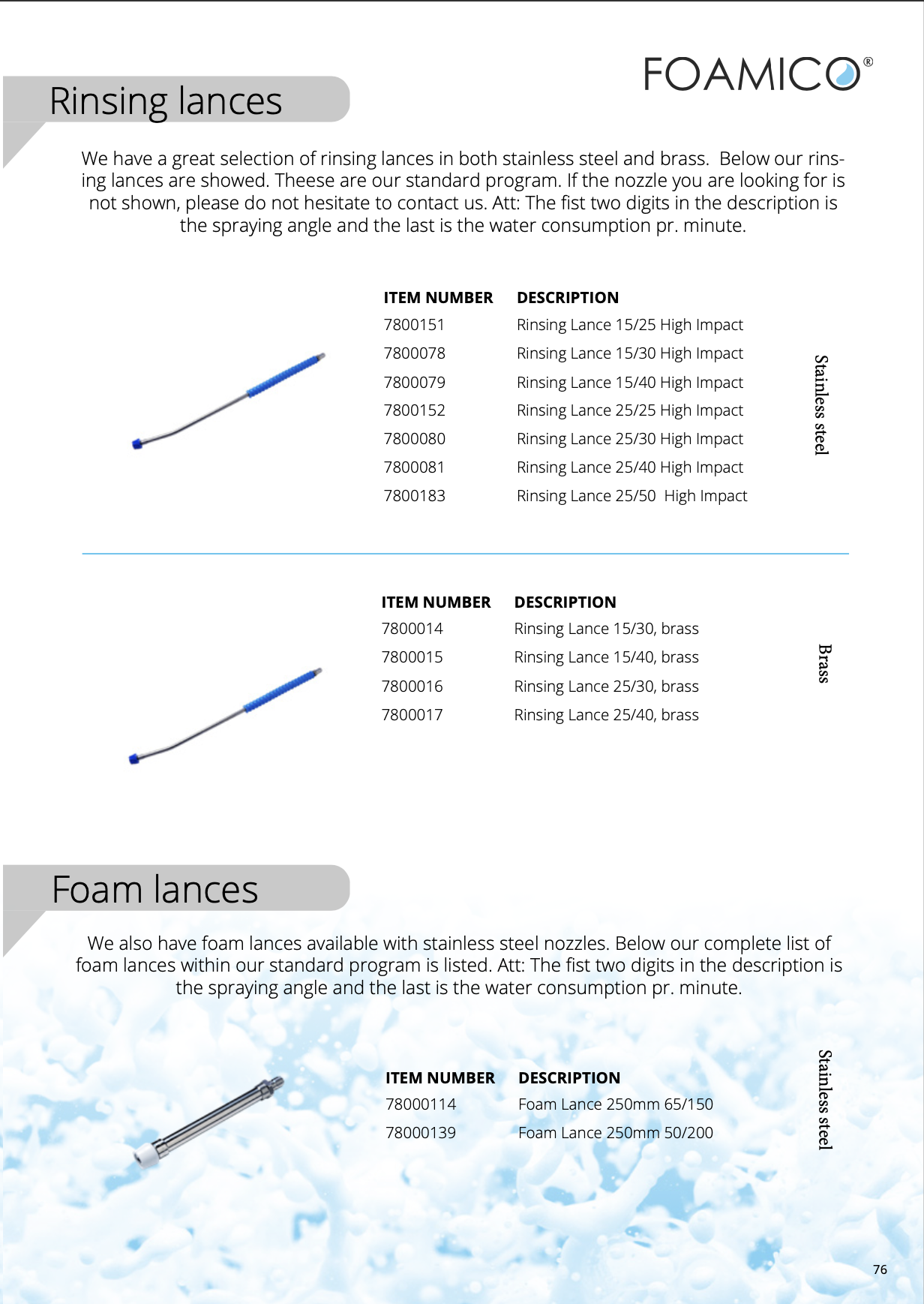

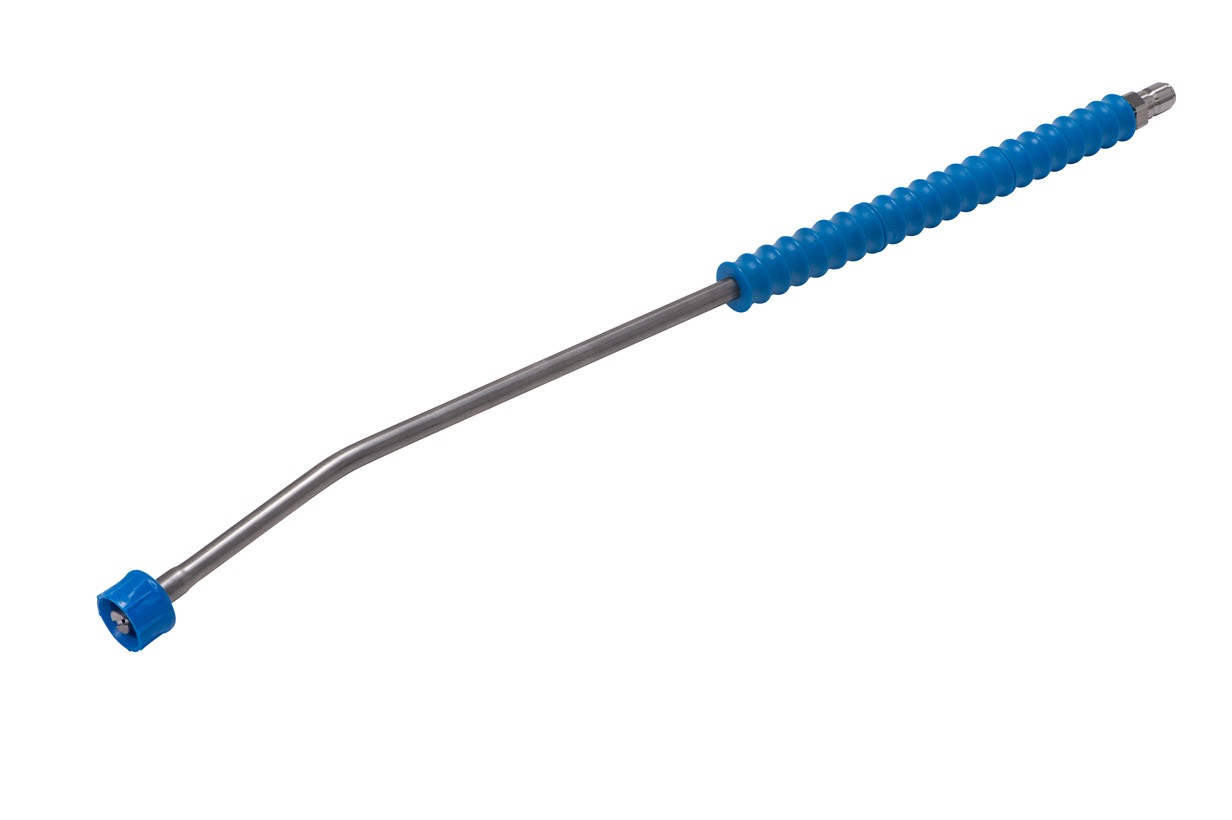

Rinsing lances
Stainless steel, high impact. The first two digits are the spray angle, the last the water use in L/min.
7800151 Rinsing lance 15/25
7800078 Rinsing lance 15/30
7800079 Rinsing lance 15/40
7800152 Rinsing lance 25/25
7800080 Rinsing lance 25/30
7800081 Rinsing lance 25/40
7800183 Rinsing lance 25/50
Lances

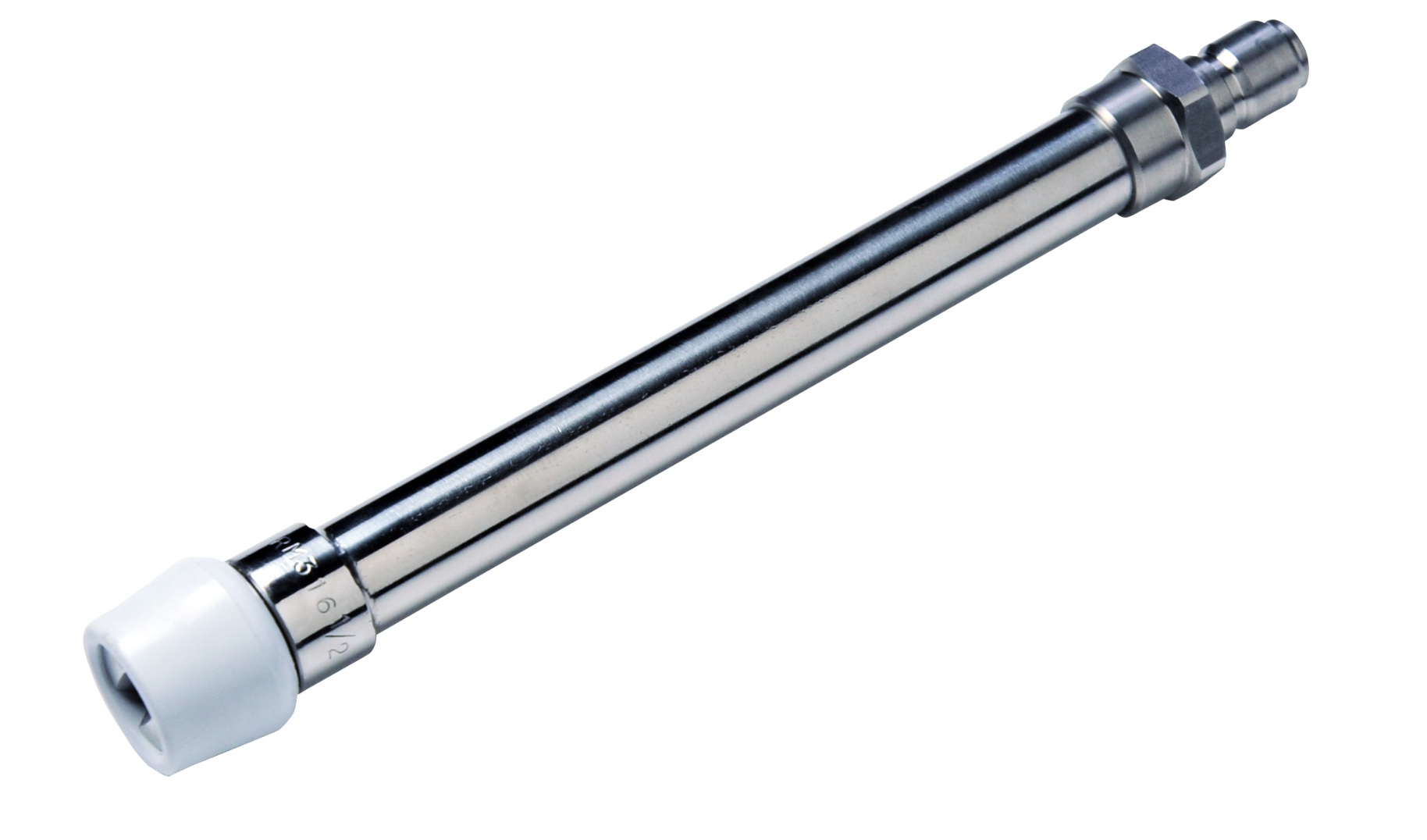

Foam lances
Foam lances with stainless steel nozzles.
78000114 Foam lance 65/150
78000139 Foam lance 50/200
Fittings and couplings

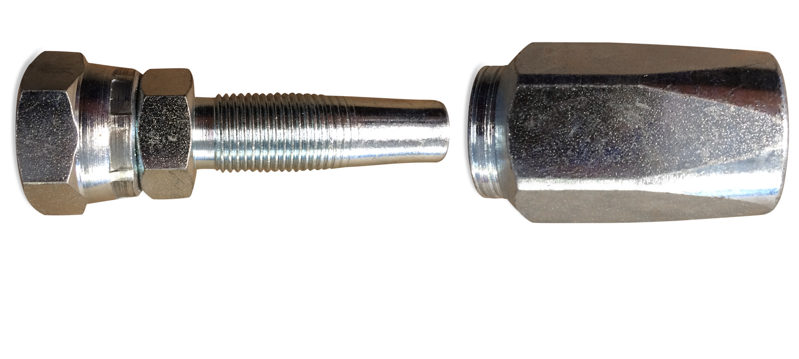

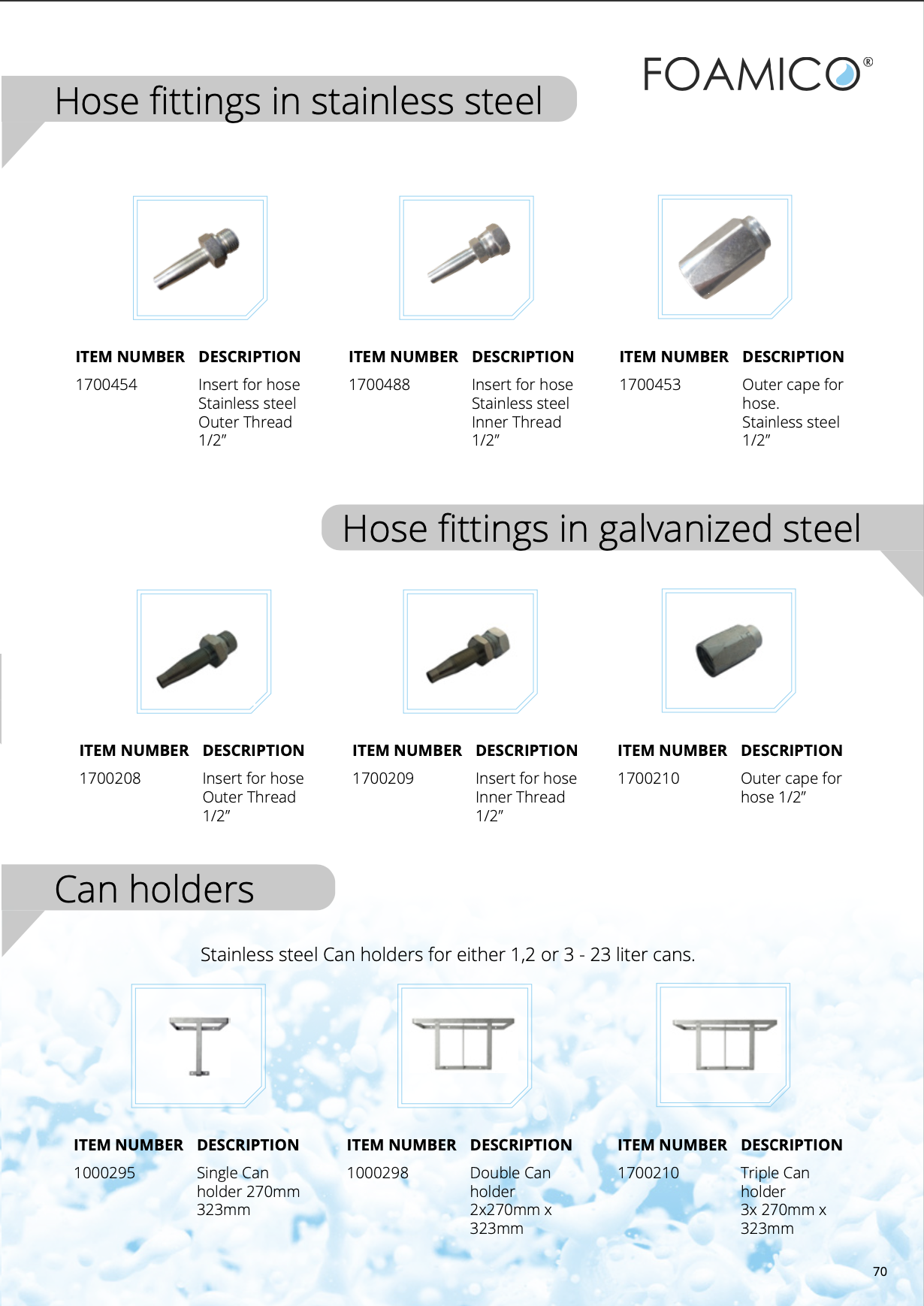

Hose fittings
Inserts and outer caps for hoses, in stainless steel or galvanised steel.
1700454 Insert for hose, stainless steel, ½" outer thread
1700488 Insert for hose, stainless steel, ½" outer thread
1700453 Outer cap for hose, stainless steel, ½"
1700208 Insert for hose, galvanised, ½" outer thread
1700209 Insert for hose, galvanised, ½" inner thread
1700210 Outer cap for hose, galvanised, ½"
Fittings and couplings
Couplings and ball valves
Quick connect couplings, press couplings and ball valves in stainless steel.

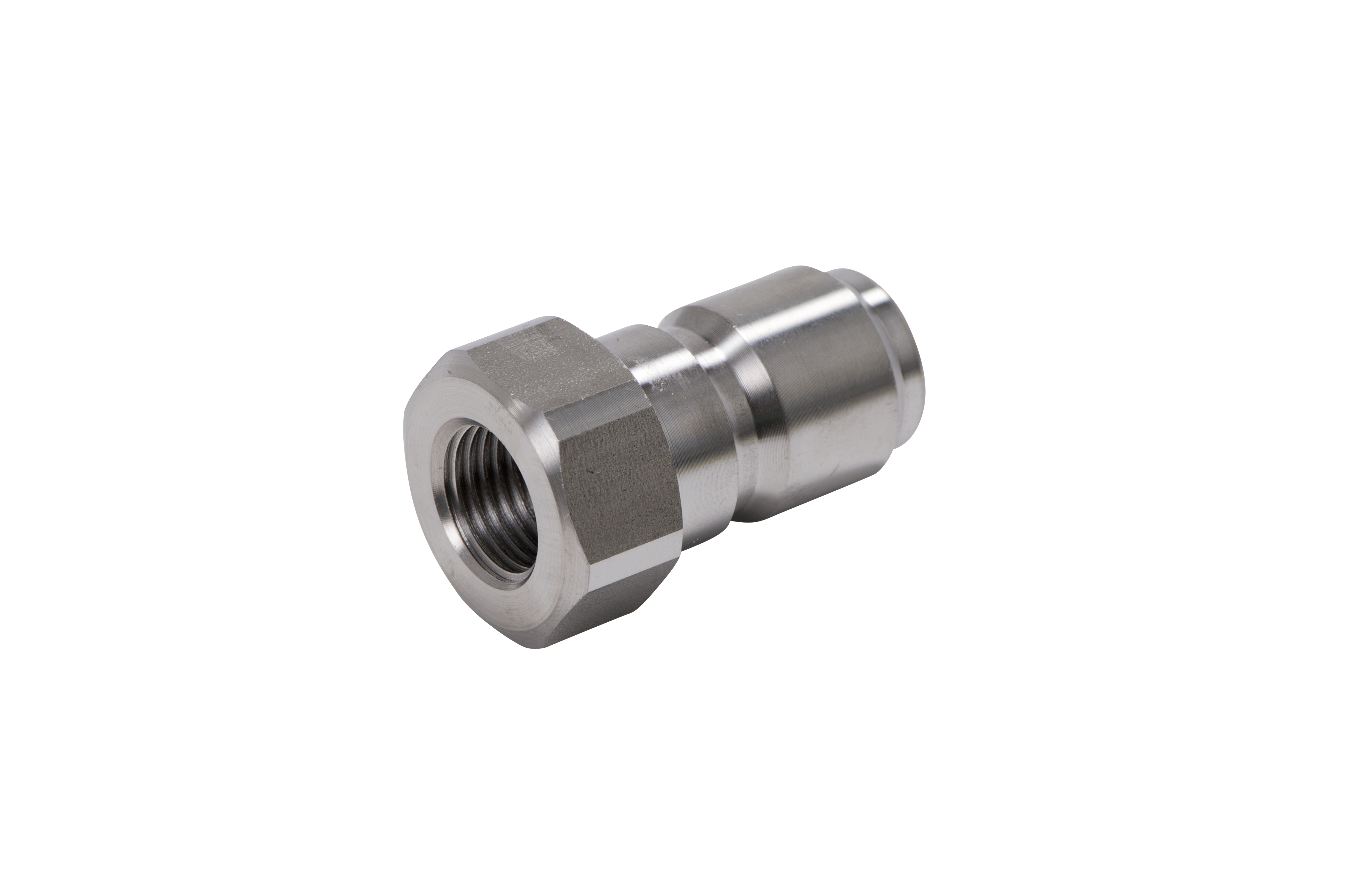

1000028 Male coupling ¼", inner thread
1000029 Male coupling 1½", inner thread

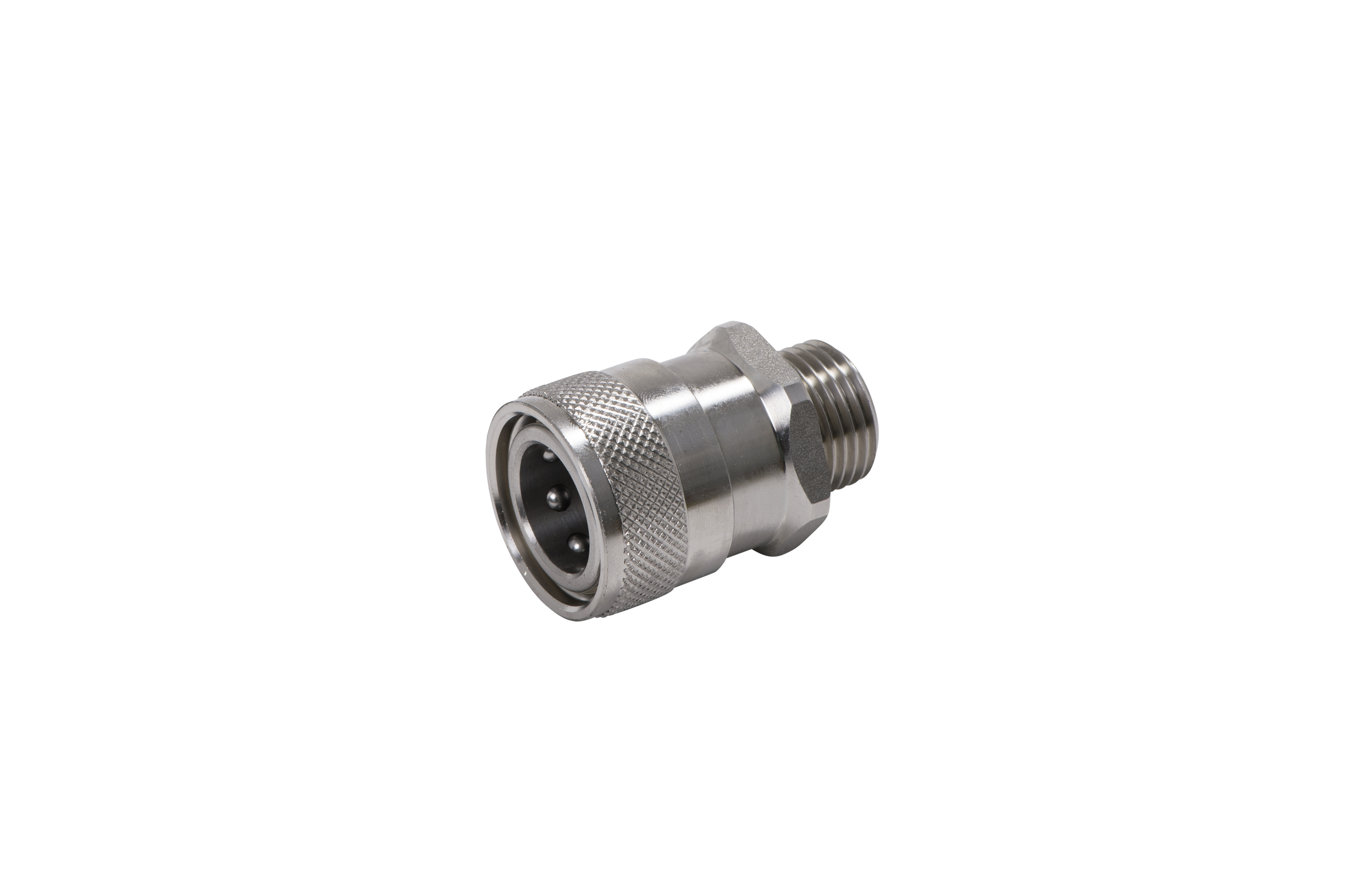

1000037 Quick connect coupling ½", outer thread

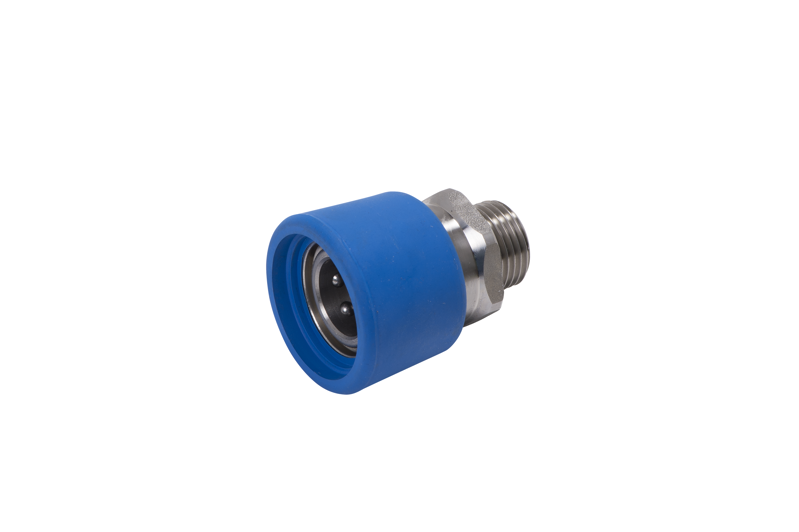

1000038 Quick connect coupling ½", outer thread, vulcanised
7800135 Press coupling ½", outer thread
1001200 Quick connect coupling ⅜", outer thread, vulcanised
7800076 Ball valve with T-piece ½", incl. quick coupling 1000037
7800353 Ball valve with L-grip ½", incl. quick coupling 1000037
1000266 Ball valve with T-piece ½", inner thread
1000069 Ball valve with L-grip ½", inner thread
Holders and reels

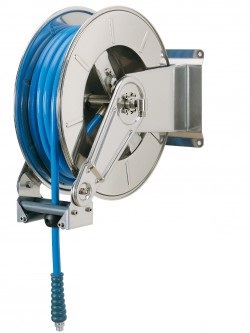

Hose reels and holders
Automatic hose reels in stainless steel, with or without swivelling bracket.
7800111 Hose reel Nedermann 886, automatic, max. 25 m ½" hose
1000510 Pivot wall bracket for Nedermann 886
7800430 Hose reel, automatic, 25 m, stainless steel
7800431 Hose reel, automatic, 30 m, stainless steel
7800432 Swivelling bracket for 25 m hose reel
7800433 Swivelling bracket for 30 m hose reel
1002839 Hose holder for wall mount, stainless steel
Holders and reels

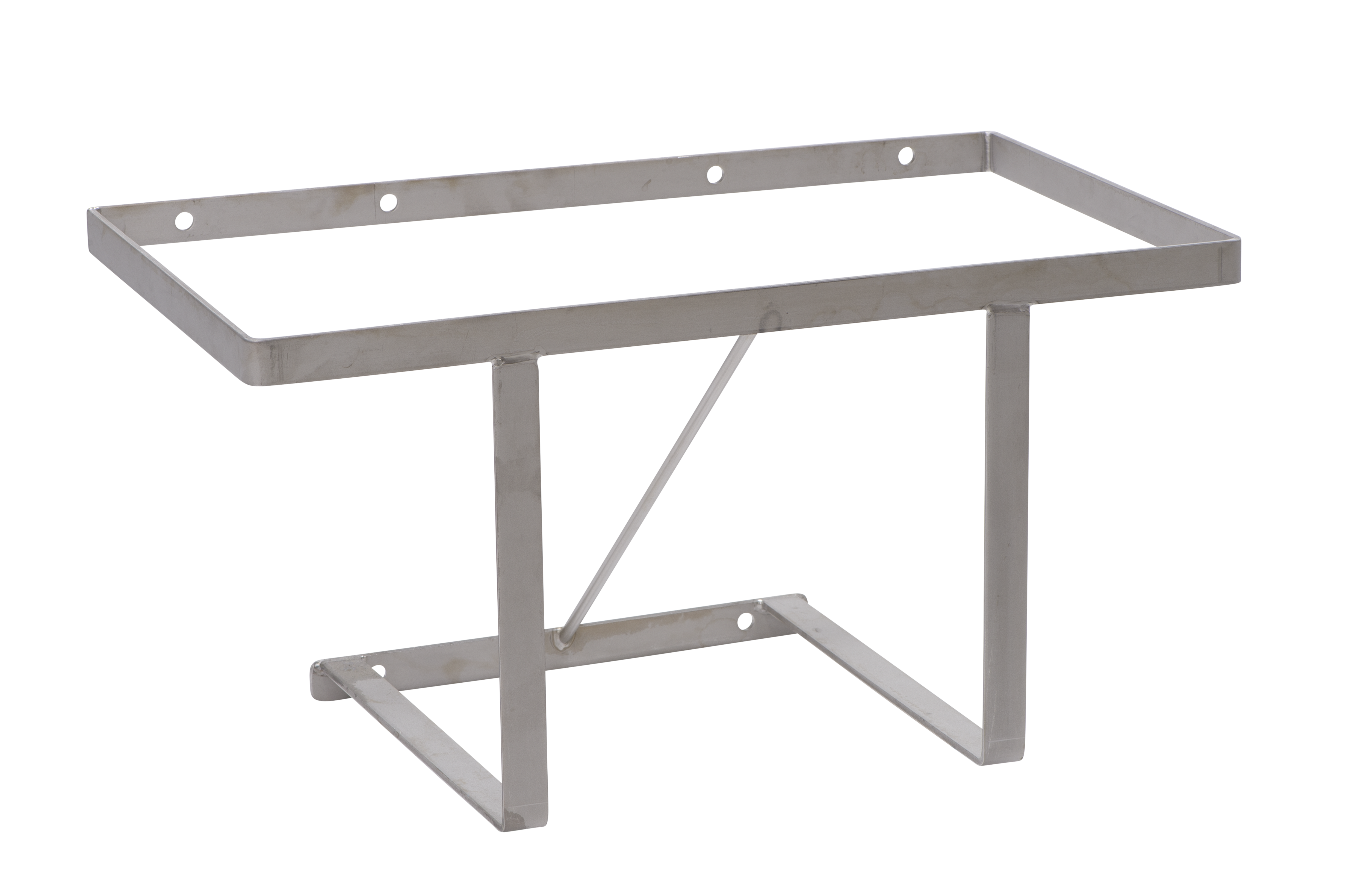

Can holders
Holders for one, two or three 23 litre cans.
1700295 Single can holder, 270 x 323 mm
1700298 Double can holder, 2 x 270 x 323 mm
1001016 Triple can holder, 3 x 270 x 323 mm
Holders and reels

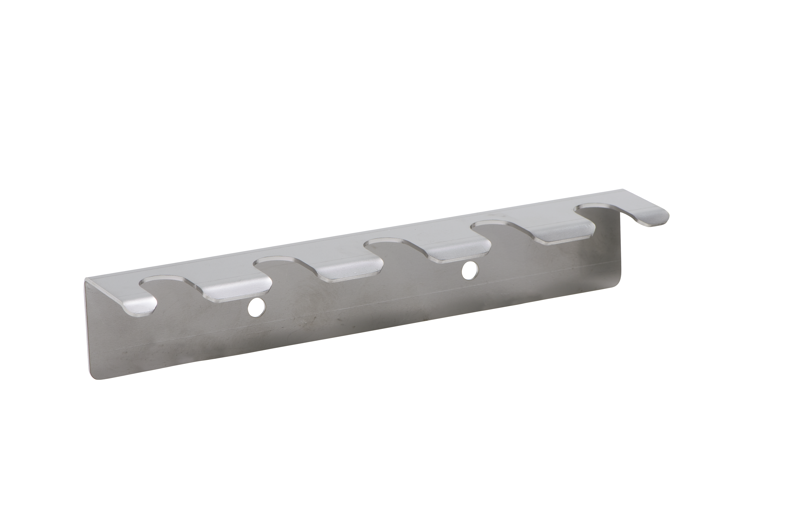

Nozzle holder
Keeps five nozzles or rinsing lances in order at the cleaning point.
1001120 Nozzle holder, 5 pcs.

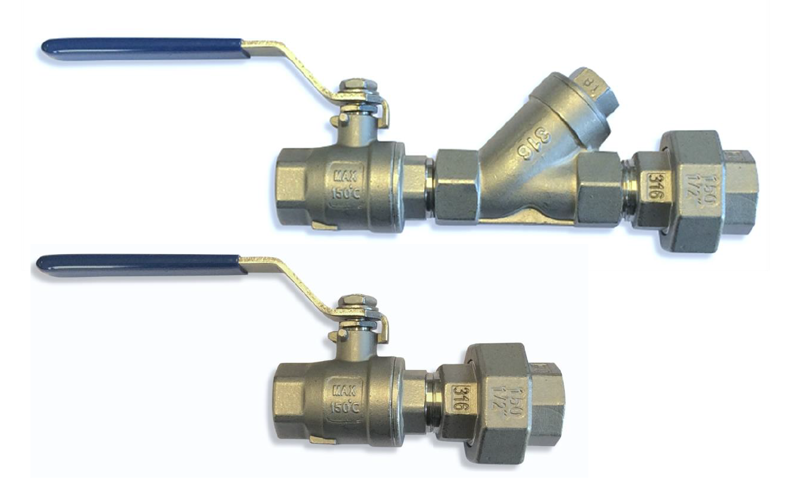

Installation kits
Installation kits
Protect flow switches, chamber stacks and injectors from fragments in the piping. Mount before the water inlet.

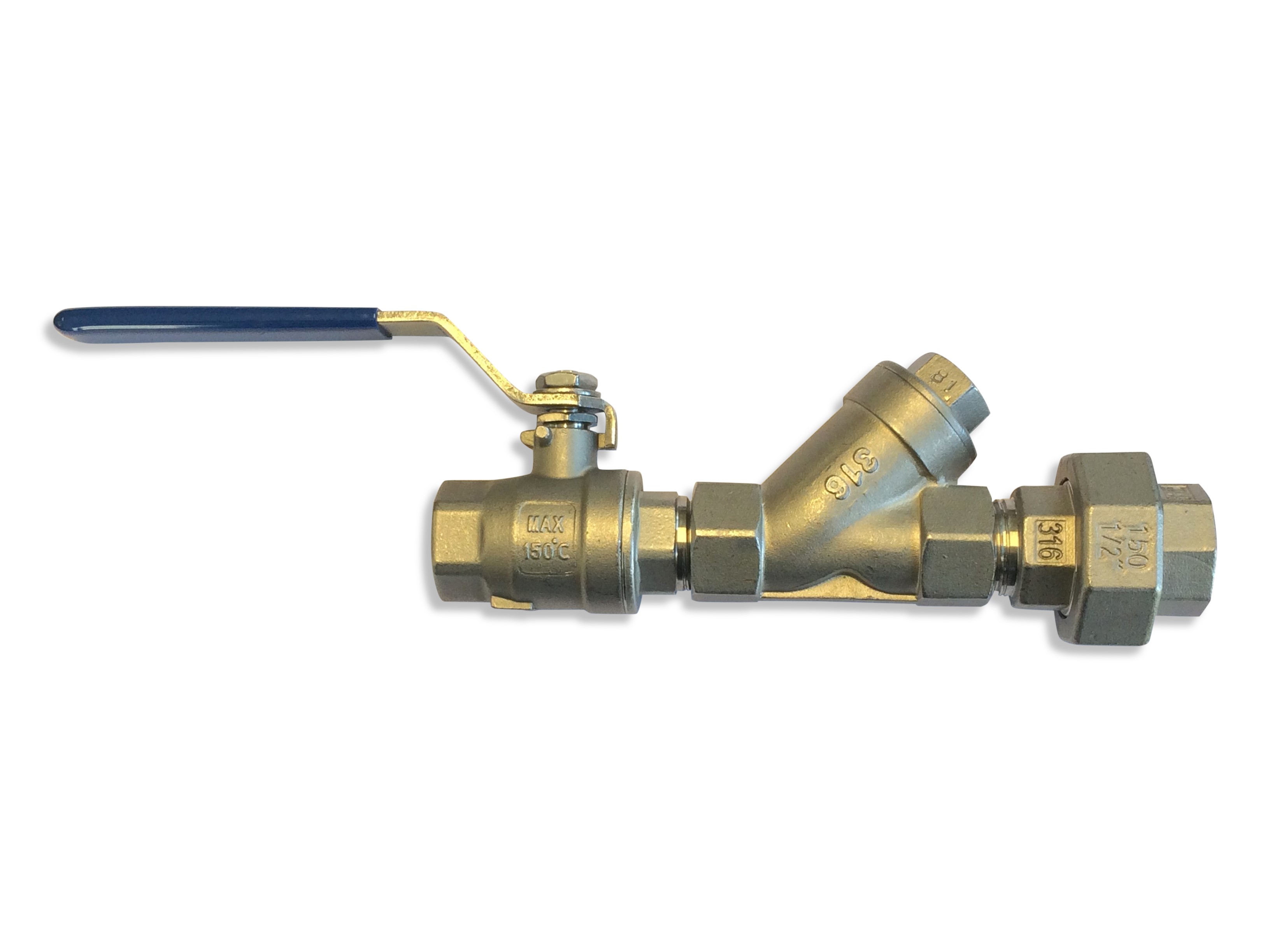

7800395 Satellite kit ½": ball valve, pipe strainer and union
7800398 Kit 1": 2 ball valves, pipe strainer, 2 unions, nipple
7800399 Kit 1¼": 2 ball valves, pipe strainer, 2 unions, nipple
7800400 Kit 1½": 2 ball valves, pipe strainer, 2 unions, nipple
7800401 Kit 2": 2 ball valves, pipe strainer, 2 unions, nipple
7800449 Air kit: ball valve, bushing, 90° fitting and 8 mm air hose
Read a nozzle
in two seconds.
Every Foamico nozzle carries its spec in the number. The first two digits are the spray angle. The last digits tell you how much it delivers per minute.
15/25
- Spray angle
- 15°
- Water use
- 25 L/min
- Item number
- 7800147
Colour the cap. Know the job.
- WhiteFoam
- GreyFoam
- RedDisinfection
- GreenDisinfection
- YellowDisinfection
- BlueDisinfection
How do I read the nozzle numbers?
The DuraLine hose is our most durable hose and handles -20 to +70 °C and up to 80 bar. The standard hose covers everyday use.
Do I need an installation kit?
We recommend one for every installation. It protects the flow switch, chamber stacks and injectors from fragments in the piping.
The part I need is not listed.
Call us on +45 2250 3900 or send us the item number from your station. We keep many more parts than shown here.
