Count about 30 L/min for every person cleaning at the same time. A B 120-27 feeds four Satellites, a B 270-27 nine, and the multi pump units run from 12 users (B 400-27) to 36 (B 1080-27). Tell us how many people clean at once, not how many Satellites you have.
Boosters.
Pressurised water for every cleaning point in the plant. Grundfos IE5 pumps, built for daily production cleaning.
Which Booster
fits your system?
Pick what the plant needs, and the matching range appears.
Answer the two questions
Your Booster range appears here.

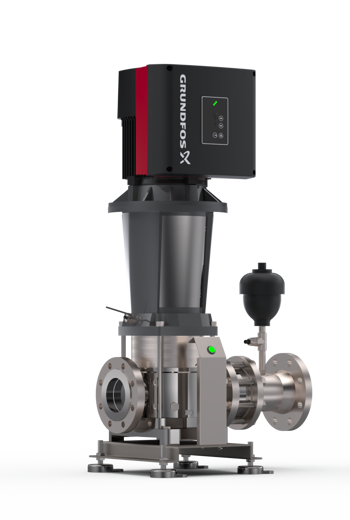

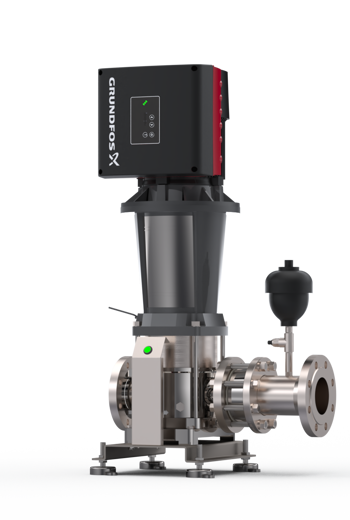

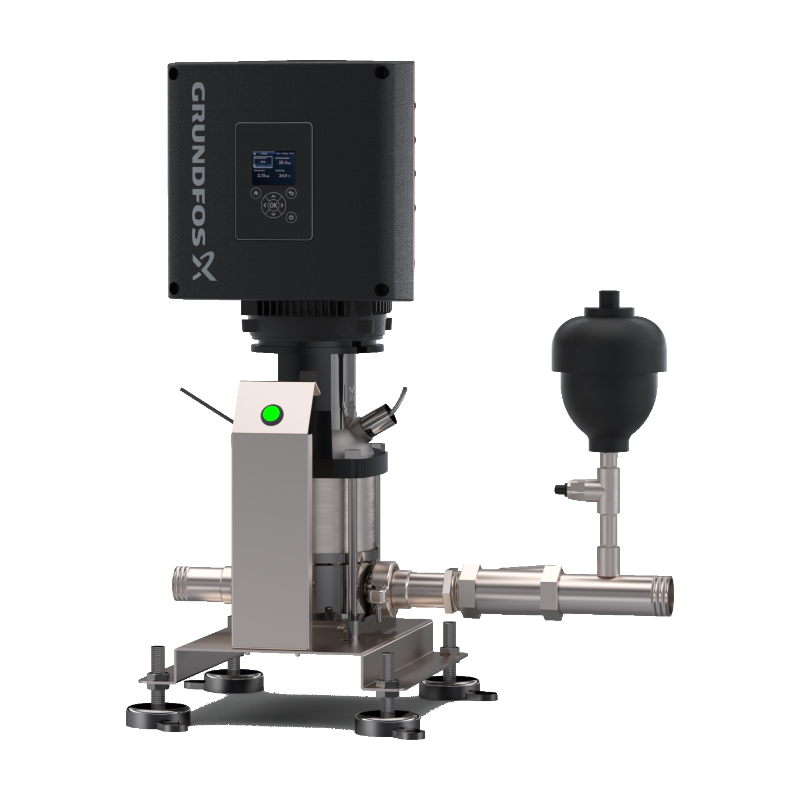

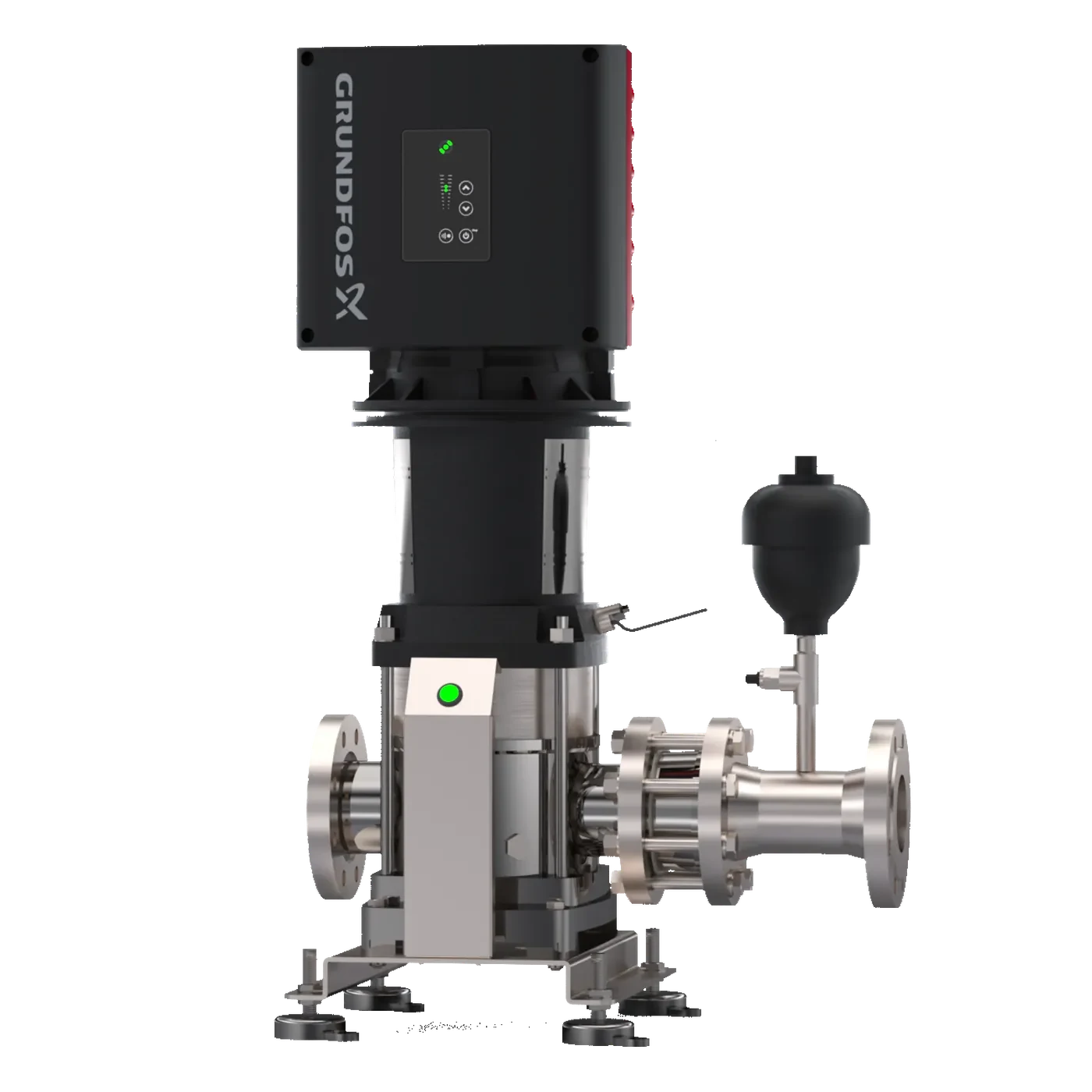

Pre-Pressure Boosters
Lifts a weak mains supply so Main Stations and Satellites get the inlet pressure they need.
Pressure3 to 5 bar
Flow120 to 1080 L/min
Models5

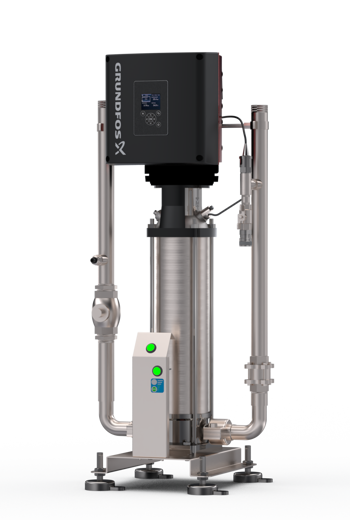

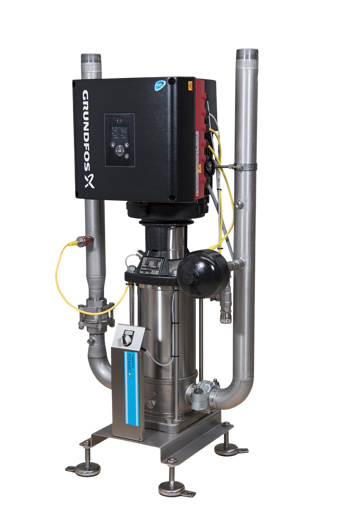

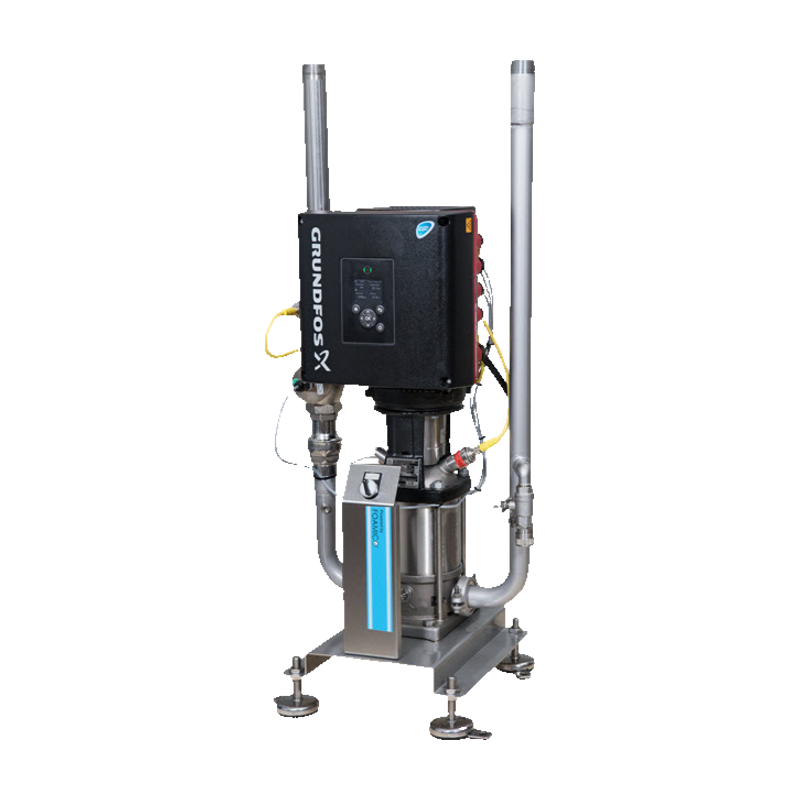

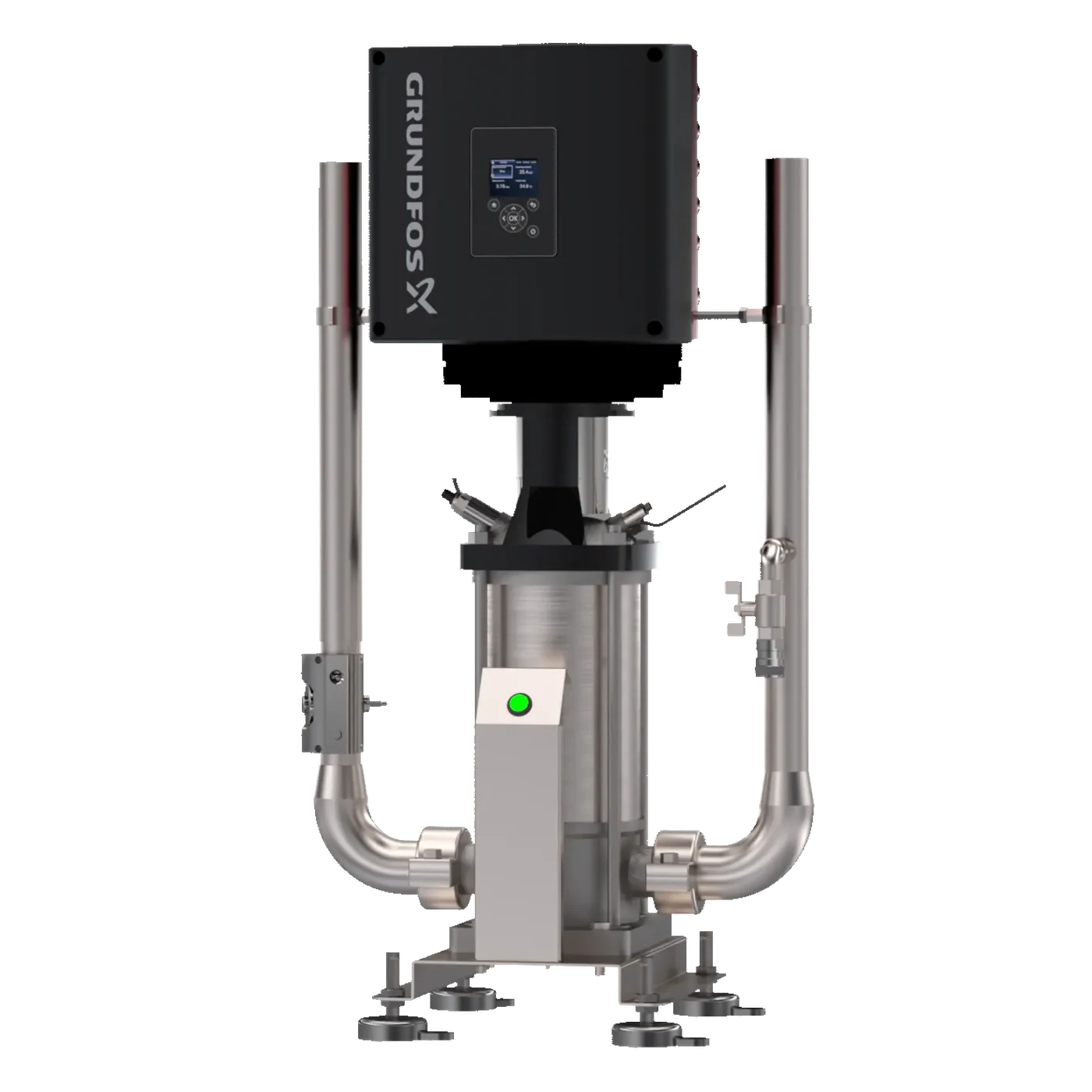

Single Pump 27 bar
One pump for one line or one hall. Simple to install and service.
Pressure27 bar
Flow50 to 270 L/min
Models6

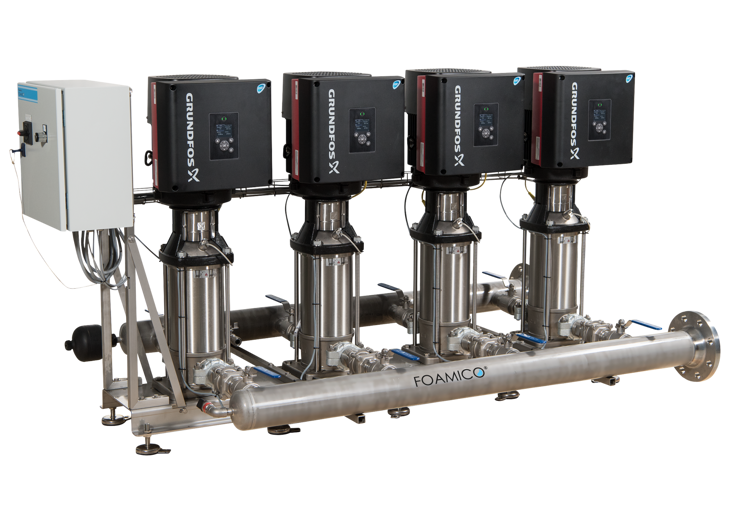

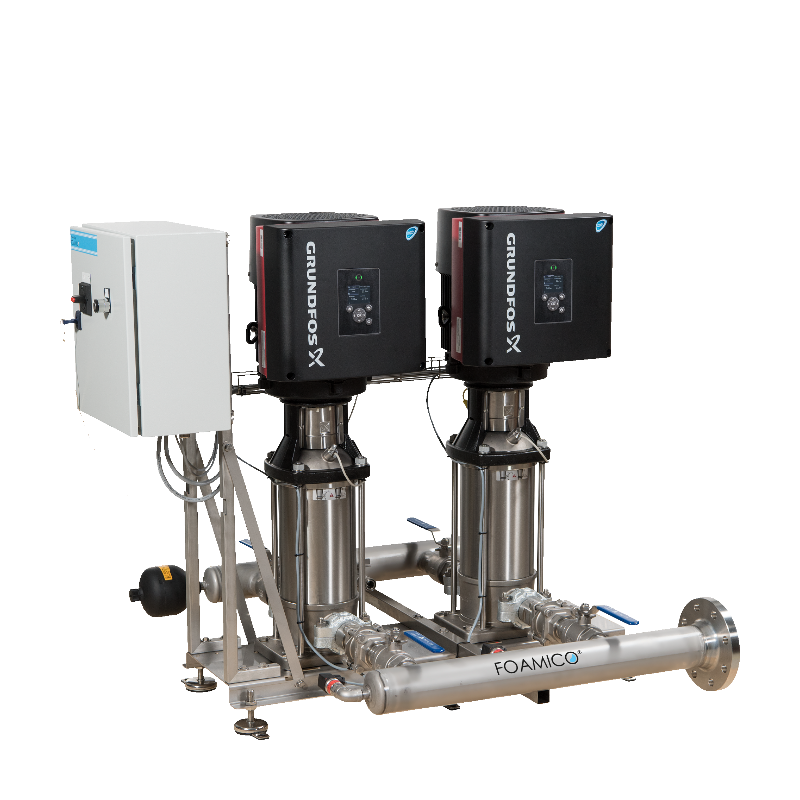

Multi Pump 27 bar
Several pumps that share the load, for a whole plant cleaning at once.
Pressure27 bar
Flow400 to 1080 L/min
Models5

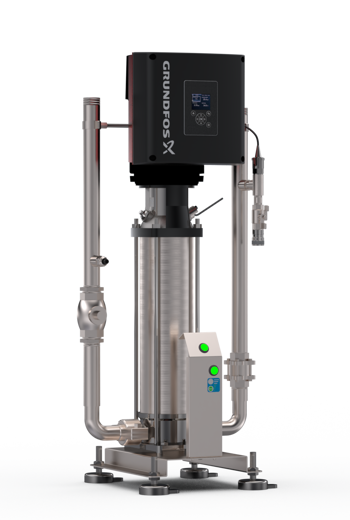

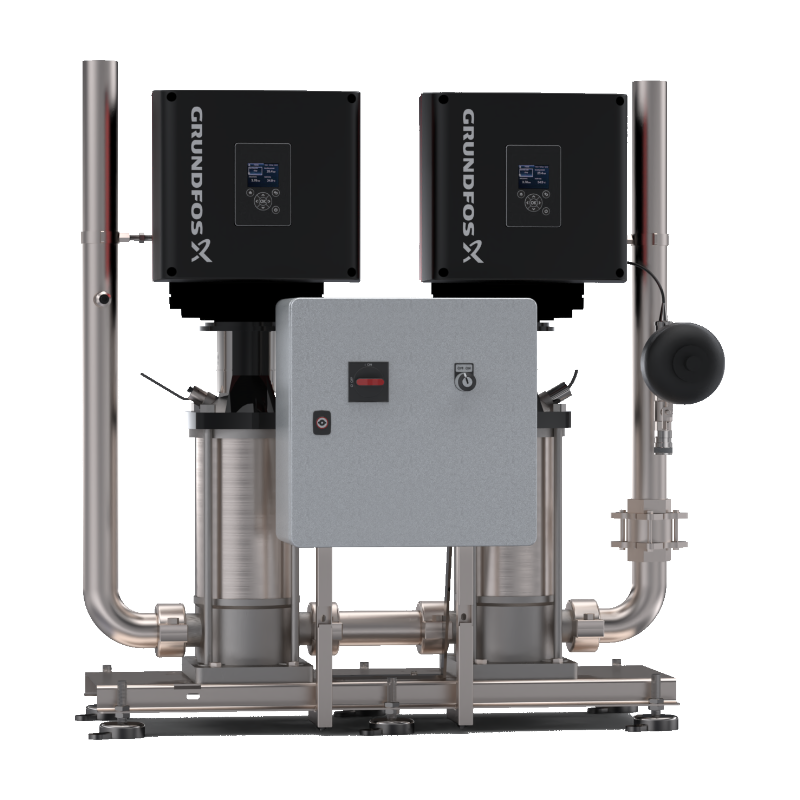

40 bar Booster stations
Higher pressure for baked-on soil and the hardest surfaces.
Pressure40 to 45 bar
Flow60 to 270 L/min
Models4
What does the plant need?
How much water at the same time?
Four ranges, sized to the plant.
From one cleaning point to a whole plant. Every range runs on Grundfos pumps, with the same mechanical simplicity throughout.
One Booster.
Up to 36 Satellites.

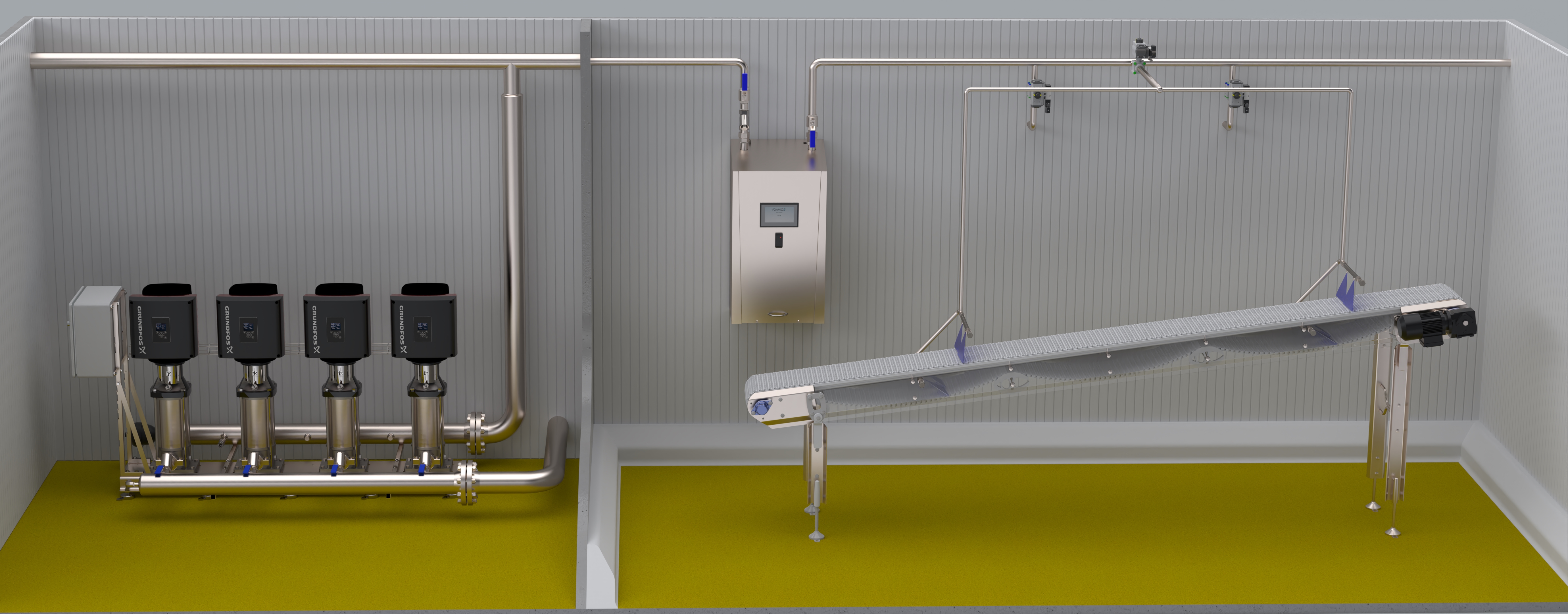

A Booster pressurises the water for a whole plant. Two to four pumps run in parallel and feed every Satellite on the line.
Smaller plant? A Main Station feeds up to nine.
See Satellites >
Pressure on demand.
Nobody at the pump.
The Booster sits in the plant room and runs itself. Nobody switches it on, nobody adjusts it. The handles out in the plant do the talking.
1A handle opensThe pressure in the ring main drops, and the pump starts.
2The pressure holdsThe Grundfos IE5 motor adjusts its speed, so every Satellite gets the same pressure whether one person cleans or nine.
3The last handle closesFlow stops, the pump stops. No idling and no wasted energy between shifts.
Foamico technology
Upgrade to gentle rinsing.
How many Satellites can one Booster feed?
When do I need 40 bar instead of 27 bar?
27 bar is the standard for daily production cleaning. The 40 bar range gives extra reach and force for baked-on soil, long hose runs and high ceilings. We size both ranges the same way, by how many people clean at once.
What is a pre-pressure Booster for?
When the mains cannot deliver enough water or pressure to the stations, a pre-pressure Booster raises the inlet to 3 to 5 bar at 120 to 1080 L/min. It sits in front of the Main Stations or the 27 bar Booster, so they never run short.
What do F and C mean in the model name?
F is foam capable, C is chemical and F/C is both. Choose the version that matches what the Satellites behind the Booster will dose. Every Booster runs on Grundfos IE5 pumps, and our specialists help you pick the right one for your production.
Not sure which Booster?
Let's size it together.
Tell us how many cleaning points you have, how far the water travels and the pressure you need. We will tell you which Booster fits, and what it would cost.
