The first number is the water flow in L/min. The second is the size of the foam injector, 150, 300 or 450 L/min.
Automatic
Satellites.
Automatic cleaning from the water you already have. Connects to your Main Station or Booster, with up to 16 zones and three chemicals through one outlet.
Three sizes. No pump needed.
The ASU takes its pressure from your Main Station or Booster. Choose the foam injector that fits the surfaces you clean.
ASU 450/150
For smaller zones and lighter soil.
Foam injector (L/min): 150
Inlet pressure: 2 to 30 bar
Flow: 450 L/min
Zones: Up to 16
Programmes: Up to 10
Voltage: 220 or 380 to 500 V
Weight: 47 kg
Dimensions: 502 x 951 x 402 mm
Item no.: 7011810
ASU 450/300
The everyday size for conveyors and fillers.
Foam injector (L/min): 300
Inlet pressure: 2 to 30 bar
Flow: 450 L/min
Zones: Up to 16
Programmes: Up to 10
Voltage: 220 or 380 to 500 V
Weight: 47 kg
Dimensions: 502 x 951 x 402 mm
Item no.: 7011811
ASU 450/450
Maximum foam for large zones and heavy soil.
Foam injector (L/min): 450
Inlet pressure: 2 to 30 bar
Flow: 450 L/min
Zones: Up to 16
Programmes: Up to 10
Voltage: 220 or 380 to 500 V
Weight: 47 kg
Dimensions: 502 x 951 x 402 mm
Item no.: 7011812
Built in
Program it once. Clean every shift.
The onboard controller runs the cleaning for you, every time, the same way.
Up to 16 zones
Clean each production zone on its own, or several at once, through external valves.
Ten programmes
Rinse, foam and rinse, or rinse, foam and disinfection. Preprogrammed and ready to run.
Manager and cleaner access
Managers set the programmes. Cleaners only see the functions they need.

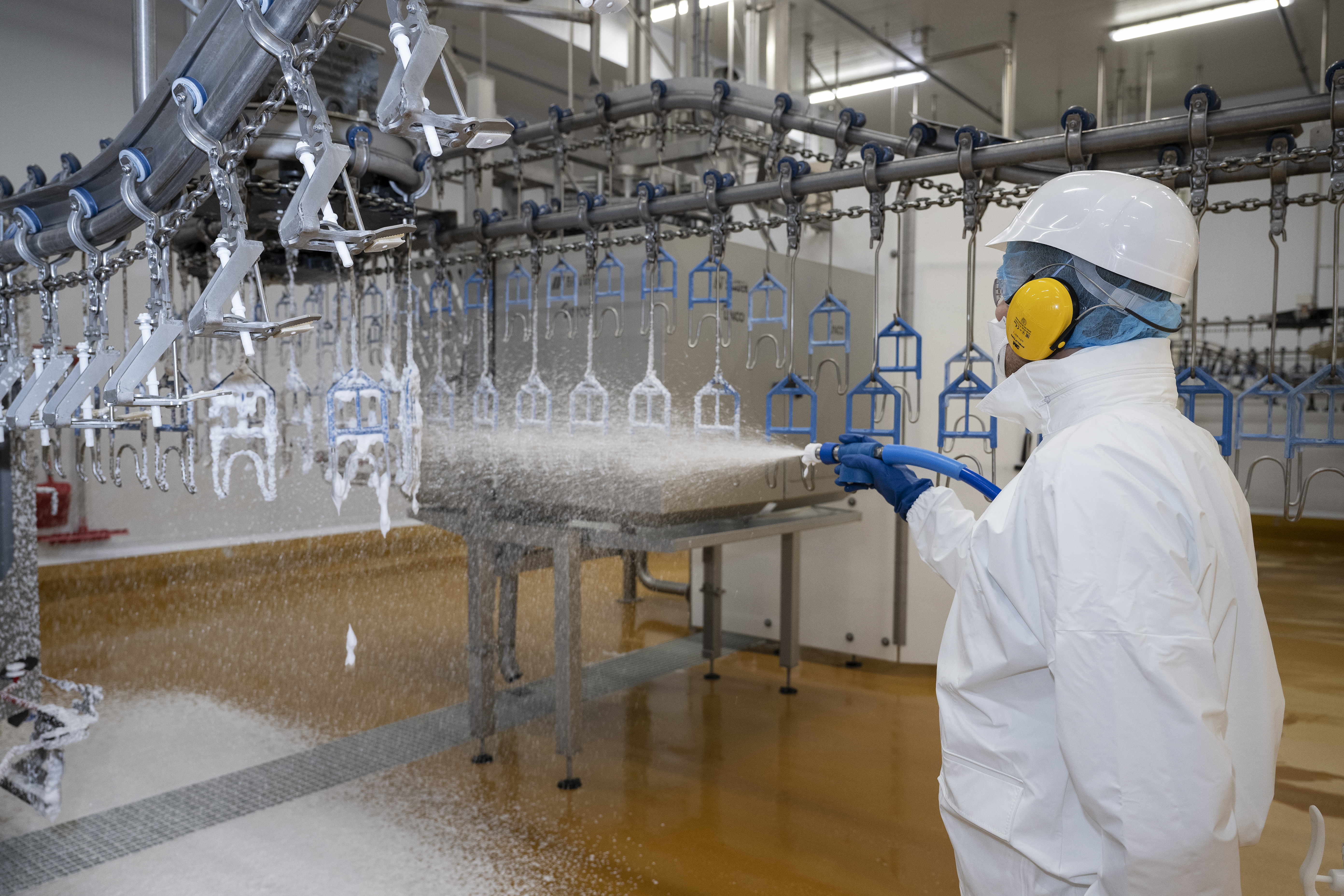

Conveyors, fillers, tanks and other food processing equipment, zone by zone or several zones at once.
Up to three, through one outlet.
Yes. Use the built-in screen, or connect over WiFi from a smartphone, tablet or PC.
A Foamico Main Station or Booster, with an inlet pressure between 2 and 30 bar.
Thinking about automation?
Let's plan it together.
Tell us what you clean, how many zones you have and the system you have today. We will tell you which Automatic Satellite fits.
