MS models use your existing compressed air to make foam. MSC models have a compressor built in, so no air supply is needed.
Heavy Duty
Main Stations.
Central low-pressure stations for food and beverage production. Up to 27 bar, with 1 to 9 people cleaning at the same time.
One station. | A heavy duty Main Station is the centre of a low-pressure cleaning system. It hangs on the wall and supplies every cleaning point in production. |
Central pressure
Ordinary tap water goes in. A Grundfos pump in the station raises the pressure to up to 27 bar.
Cleaning points where the work is
Fixed pipes carry the water to Satellites around the plant, so up to 9 people clean at the same time.
Built for daily cleaning
Rinsing, foaming and disinfection in meat, poultry, fish, dairy and beverage production.
The range.
Pick the size by how many people need to clean at the same time.

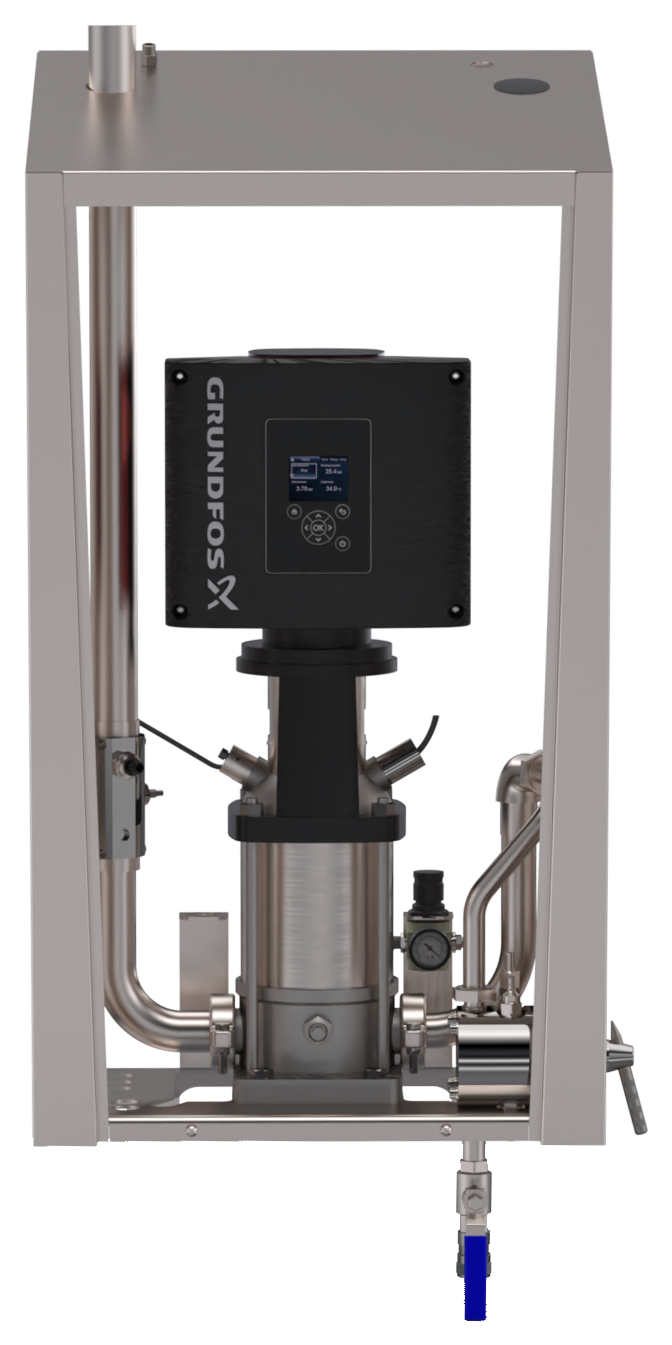

MS NEXT Main Station
Wall mounted, high-grade stainless steel.
ModelPeople cleaning at the same timeMax. flow
Same on every station: 27 bar pressure · 3 chemicals · 2 to 10 bar inlet · 70 °C max. water
Specifications. Side by side.
The three stations above, compared on everything that separates them.
Compact, 2 chemicals
MSC & MS ULTRA 0106
Pump pressure (at 3 bar inlet): 8.5 bar
Water flow (max.): 30 L/min
Chemicals (one outlet): 2
Inlet pressure: 2 to 4 bar
Water temperature (max.): 70 °C
Foam air: Air supply or compressor
Pump start: Flow switch
Power (max.): 0.5 + 0.75 kW
Voltage: 1 × 220 to 240 V
Accessories: Choice of standard kits
Trolley option: Yes, MSC version only
Most power, 3 chemicals
MS 0112
Pump pressure (at 3 bar inlet): 14 bar
Water flow (max.): 40 L/min
Chemicals (one outlet): 3
Inlet pressure: 2 to 10 bar
Water temperature (max.): 70 °C
Foam air: Air supply or compressor
Pump start: Frequency controlled
Power (max.): 1.1 kW
Voltage: 1 × 220 to 240 V
Accessories: Full nozzle set
Trolley option: Not available
No compressed air
MS ULTRA 0106 XA
Pump pressure (at 3 bar inlet): 8.5 bar
Water flow (max.): 30 L/min
Chemicals (one outlet): 2
Inlet pressure: 2 to 4 bar
Water temperature (max.): 70 °C
Foam air: None, Turbo Foam nozzle
Pump start: Flow switch
Power (max.): 0.5 + 0.75 kW
Voltage: 1 × 220 to 240 V
Accessories: Kits 3 and 4 with Turbo Foam
Trolley option: Not available
Need it mobile?
MSC comes on a trolley.
The trolley version is only available for the MSC 0106. Because the compressor is built in, the station needs no air supply, so it works wherever there is water and power.
Built-in compressor
No air supply to connect, wherever you roll it.
Same station, same specs
8.5 bar, 30 L/min and 2 chemicals, as on the wall.
Moves between rooms and sites
One station can serve several areas.
Which one fits?
0106compact, 2 chemicals
0112more power, 3 chemicals
I have compressed airThe station uses your air supply for foam.
MS ULTRA 0106
DatasheetMS 0112
DatasheetI need a compressorBuilt into the station. No air supply needed.
MSC ULTRA 0106Also available on a trolley
DatasheetMSC 0112
DatasheetNo air at allFoam from the Turbo Foam nozzle.
MS ULTRA 0106 XA
DatasheetNot available
One handle.
Three steps.
No start button, no air valve, no separate compressor switch. The station does the thinking, so the operator can focus on the clean.
1ConnectPower, water and chemicals. Plus air on MS models.
2AttachA hose with a nozzle or a foam gun.
3Turn the handlePick water or a chemical. The pump starts when you open the gun.
One handle.
Every step.
No start button, no air valve, no separate compressor switch. Turn the handle to the icon you need, open the gun, and the station does the rest.
- 01Connect water, power and chemicals. Plus air for foam.
- 02Attach a hose with a nozzle, or a foam gun.
- 03Turn the handle to rinse or one of the chemicals.
- 04Clean. Open the gun and the pump starts. Close it and it stops.
Rinse
Try it. Turn the handle or tap an icon.
What is the difference between MS and MSC?
XA models make foam without compressed air. Instead, they use our Turbo Foam nozzle, which is included in standard accessory kits 3 and 4.
0106 or 0112: which should I choose?
Choose the 0106 for a compact, simple station with 2 chemicals, 8.5 bar and 30 L/min. Choose the 0112 if you need more power: 3 chemicals, 14 bar, 40 L/min and a wider inlet pressure range of 2 to 10 bar.
Can I get a station on a trolley?
Yes, the MSC 0106 can be delivered mounted on a trolley. It is the same station with the same specifications, and because the compressor is built in, it works wherever there is water and power.
