The two versions are the same except for the seal material. We help you choose based on the chemicals you use.

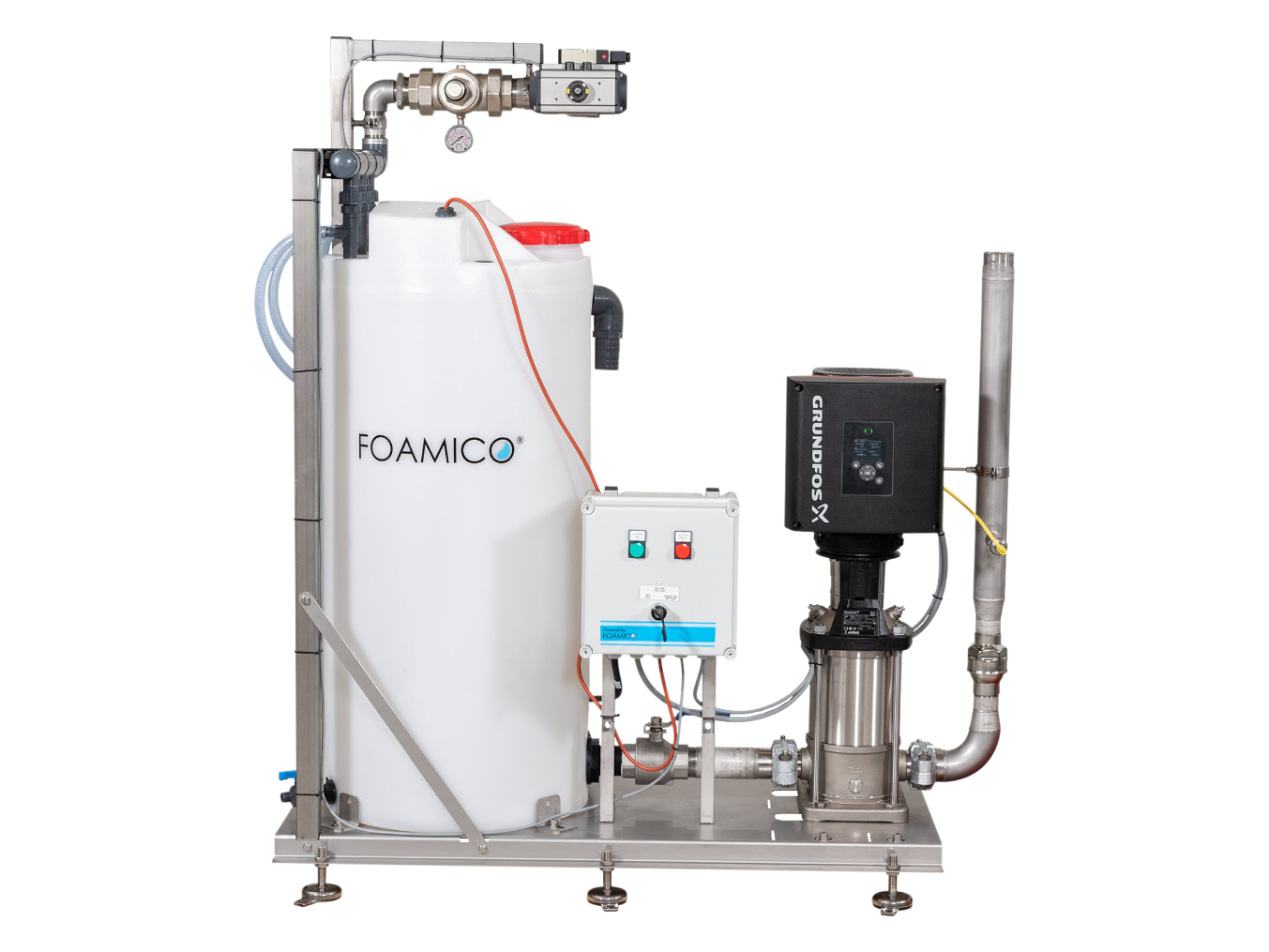

Mixing
Stations.
The heart of a pre-diluted system. Water and chemicals are mixed in one place and sent out to every Satellite in the plant.
Four sizes. Up to 25 users.
Every model comes with EPDM or Viton seals. Choose by how many people clean at the same time.
EPDM, Viton
B-D 40-10F
Mixes for up to 5 users at once.
Users: 5
Flow: 40 L/min
Pressure: 10 bar
Inlet pressure: 2 to 10 bar
Max. water temperature: 40 °C
Pipe inlet and outlet: 1 ¼"
Power: 3.0 kW
Weight: 155 kg
Dimensions: 1200 x 1260 x 710 mm
Item no. (EPDM / Viton): 7012050 / 7012054
EPDM, Viton
B-D 80-10F
Mixes for up to 10 users at once.
Users: 10
Flow: 80 L/min
Pressure: 10 bar
Inlet pressure: 2 to 10 bar
Max. water temperature: 40 °C
Pipe inlet and outlet: 1 ¼"
Power: 3.0 kW
Weight: 155 kg
Dimensions: 1200 x 1260 x 710 mm
Item no. (EPDM / Viton): 7012051 / 7012055
EPDM, Viton
B-D 120-10F
Mixes for up to 15 users at once.
Users: 15
Flow: 120 L/min
Pressure: 10 bar
Inlet pressure: 2 to 10 bar
Max. water temperature: 40 °C
Pipe inlet and outlet: 1 ¼"
Power: 3.0 kW
Weight: 155 kg
Dimensions: 1200 x 1260 x 710 mm
Item no. (EPDM / Viton): 7012052 / 7012056
EPDM, Viton
B-D 240-10F
Mixes for up to 25 users at once.
Users: 25
Flow: 240 L/min
Pressure: 10 bar
Inlet pressure: 2 to 10 bar
Max. water temperature: 40 °C
Pipe inlet and outlet: 2"
Power: 6.0 kW
Weight: 165 kg
Dimensions: 1200 x 1260 x 710 mm
Item no. (EPDM / Viton): 7012057 / 7012058
Built in
Simple inside. Accurate every time.
No dosing pumps and no complex mechanics. Just the right dilution, every time.
Venturi dosing
Injectors mix the chemicals with water with maximum accuracy and consistency.
Ready to connect
Delivered with a 10 metre suction hose with filter for drums or IBCs, and an inlet pressure valve.
Grundfos IE5 pump
Frequency controlled, with a password protected digital display.
Mixed in one room.
Clean in every other.
The concentrate stays in the plant room. The Mixing Station blends it with water, and only the ready mix runs out to the Satellites.
- 01Mix centrally. The Mixing Station doses the chemicals by venturi.
- 02Send it out. Ready mixed chemicals run through stainless steel pipes.
- 03Clean with one handle. The right dilution at every Satellite.
A 10 metre suction hose with filter for chemical drums or IBCs, and an inlet pressure regulation valve.
From 5 on the B-D 40-10F up to 25 on the B-D 240-10F.
What else does the system need?
Pre-diluted Satellites out in the plant, and a Main Station or Booster for the water pressure.
Not sure which size?
Let's size it together.
Tell us how many cleaning points you have and which chemicals you use. We will tell you which Mixing Station fits.
