Count the chemicals. NEXT runs three, Baseline two and Light one, each with rinse.
Mobile
Satellites.
A Satellite on a stainless steel trolley. Roll it to where the cleaning is, click the hose onto the nearest coupling point, and clean with one handle.
One handle.
Every step.
No start button, no air valve, no separate compressor switch. Turn the handle to the icon you need, open the gun, and the station does the rest.
- 01Connect pressurised water and compressed air from a coupling point on the wall.
- 02Attach a hose with a nozzle, or a foam gun.
- 03Turn the handle to rinse or one of the chemicals.
- 04Clean. Open the gun and the pump starts. Close it and it stops.
Rinse
Try it. Turn the handle or tap an icon.
Three Satellites. One trolley.
Pick the Satellite by how many chemicals the job needs. Every model comes in a 27 and a 50 bar version.
27 bar, 50 bar

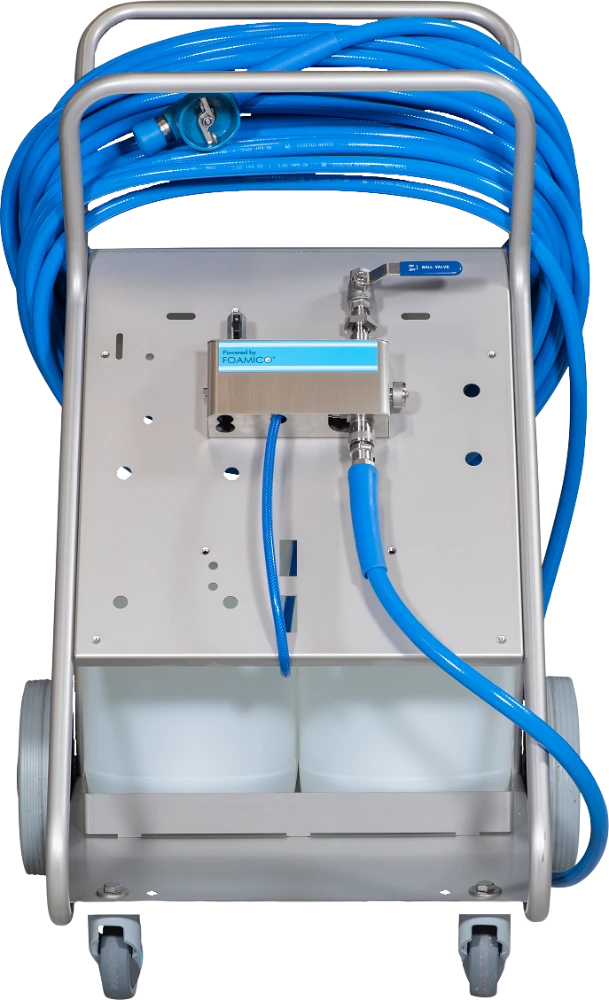

SU Light Mobile
One chemical and rinse. Light and simple.
Chemicals: 1
Flow: 50 L/min
Pressure: 27 or 50 bar
Smart Handle: No
Weight on trolley: 25.5 kg
Item no. (27 / 50 bar): 7011021 / 7011022
27 bar, 50 bar

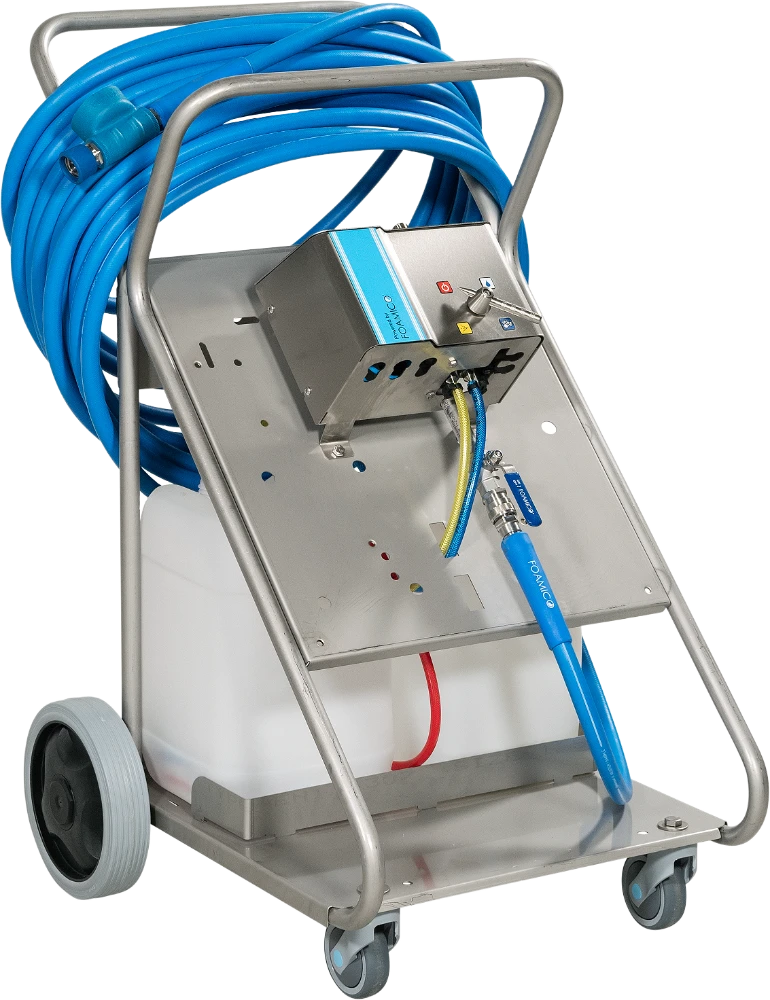

SU Baseline Mobile
Two chemicals and rinse. The everyday choice.
Chemicals: 2
Flow: 50 L/min
Pressure: 27 or 50 bar
Smart Handle: Yes
Weight on trolley: 29 kg
Item no. (27 / 50 bar): 7011330 / 7011333
27 bar, 50 bar
SU NEXT Mobile
Three chemicals and rinse from one handle.
Chemicals: 3
Flow: 100 L/min
Pressure: 27 or 50 bar
Smart Handle: Yes
Weight on trolley: 28 kg
Item no. (27 / 50 bar): 7011504 / 7011509
Why on a trolley
Cleaning that moves. Same handle.
The same Satellite you know from the wall, built onto a trolley so one Satellite can serve several areas.
Roll it where it is needed
One station for several lines, rooms or shifts. No fixed cleaning point needed.
The same Smart Handle
Rinse, foam and disinfection from one handle and one outlet, exactly as on the wall.
Click on and clean
Click the hoses onto a coupling point on the wall and the Satellite is ready.
A coupling point on a pipe from your Foamico Main Station or Booster, which supplies the water at 27 or 50 bar. You can have as many coupling points as you need.
Yes, for the foam. 5 to 10 bar from the plant's compressed air, about 150 to 200 L/min.
Chemical limiting nozzles, rinsing nozzle, foam nozzle and a nozzle holder. NEXT and Baseline also come with a disinfection nozzle.
Not sure which one?
Let's find the right one together.
Tell us about the plant and the system you have today. We will tell you which Mobile Satellite fits.
