The two versions of the PSU 0127 PB2. Ask us which one fits your chemicals.
Pre-diluted
Satellites.
The ready mixed chemicals, out on the production floor. Rinse, foam and disinfection from one handle, with no concentrate in sight.
Three models. One handle.
Choose by how many pre-diluted chemicals the job needs, and whether one process needs a stronger, local chemical.
FD, FF

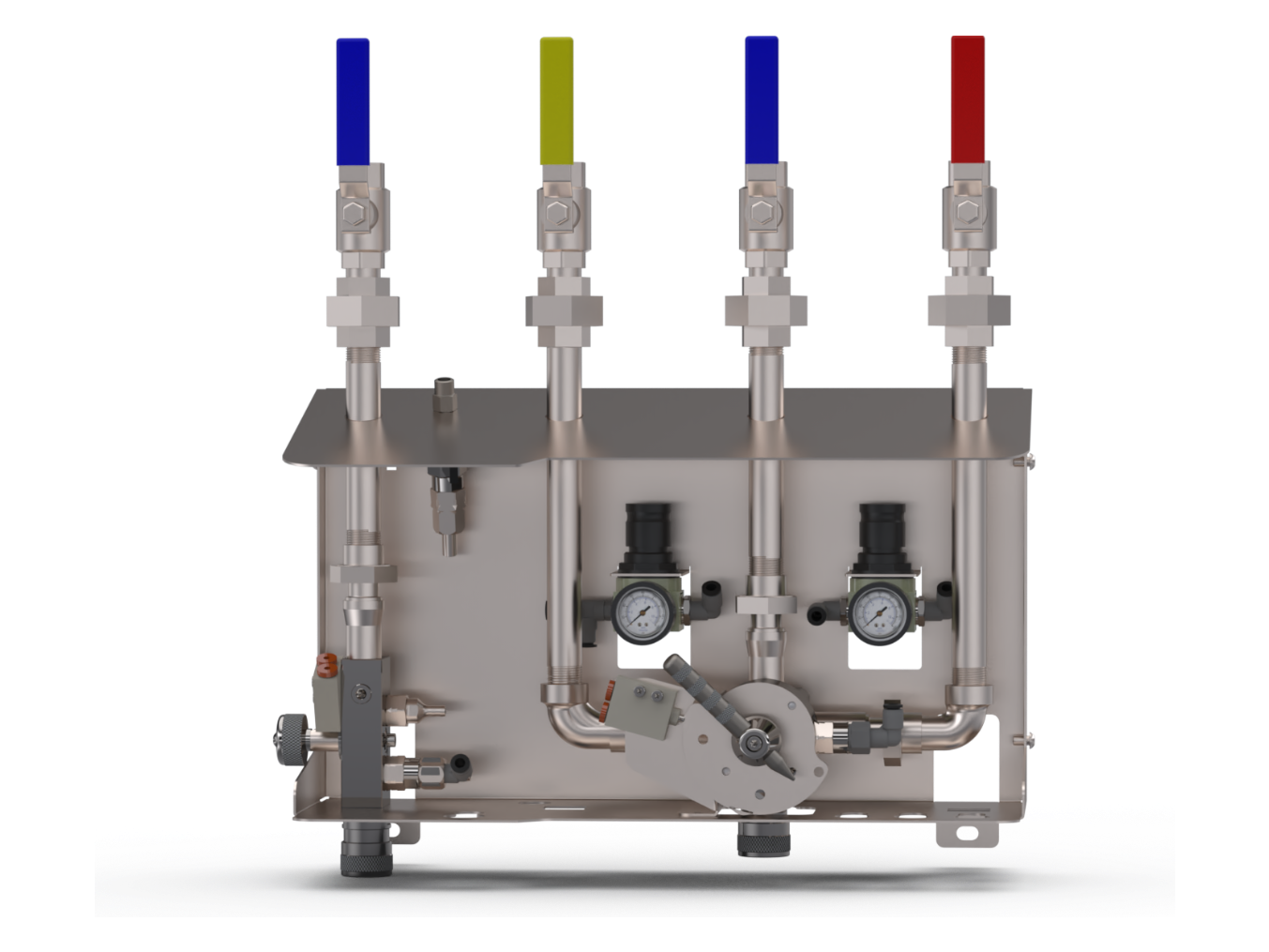

PSU 0127 PB2
Two pre-diluted chemicals and rinse.
Chemicals: 2
Users: 1
Flow: 50 L/min
Pressure: 27 bar
Water inlet: 12 to 25 bar
Chemical inlet: 5 to 8 bar
Weight: 11 kg
Dimensions: 450 x 260 x 200 mm
Item no. (FD / FF): 7013319 / 7013320
FD, FF

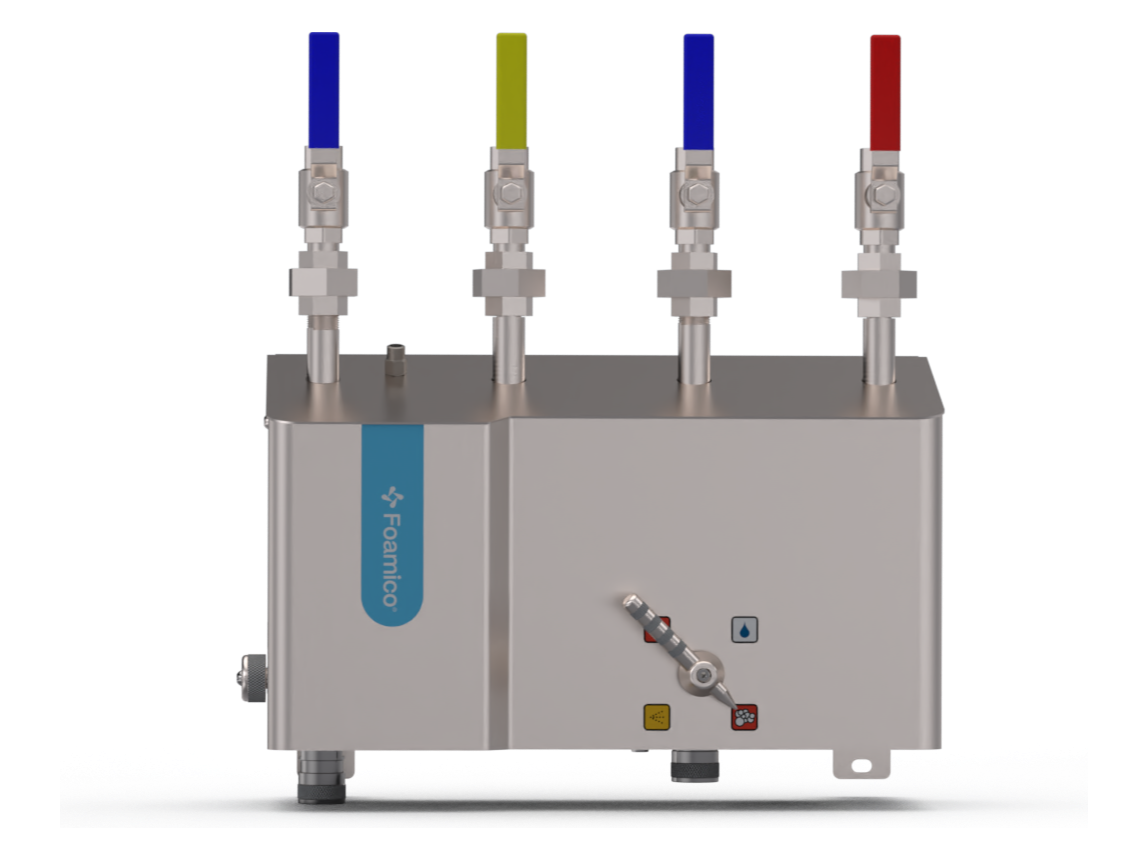

PSU 0127 PB2 LB
Two pre-diluted chemicals and one local chemical.
Chemicals: 3
Users: 2
Flow: 50 L/min
Pressure: 27 bar
Water inlet: 12 to 25 bar
Chemical inlet: 5 to 8 bar
Weight: 13 kg
Dimensions: 450 x 260 x 200 mm
Item no. (FD / FF): 7013321 / 7013323

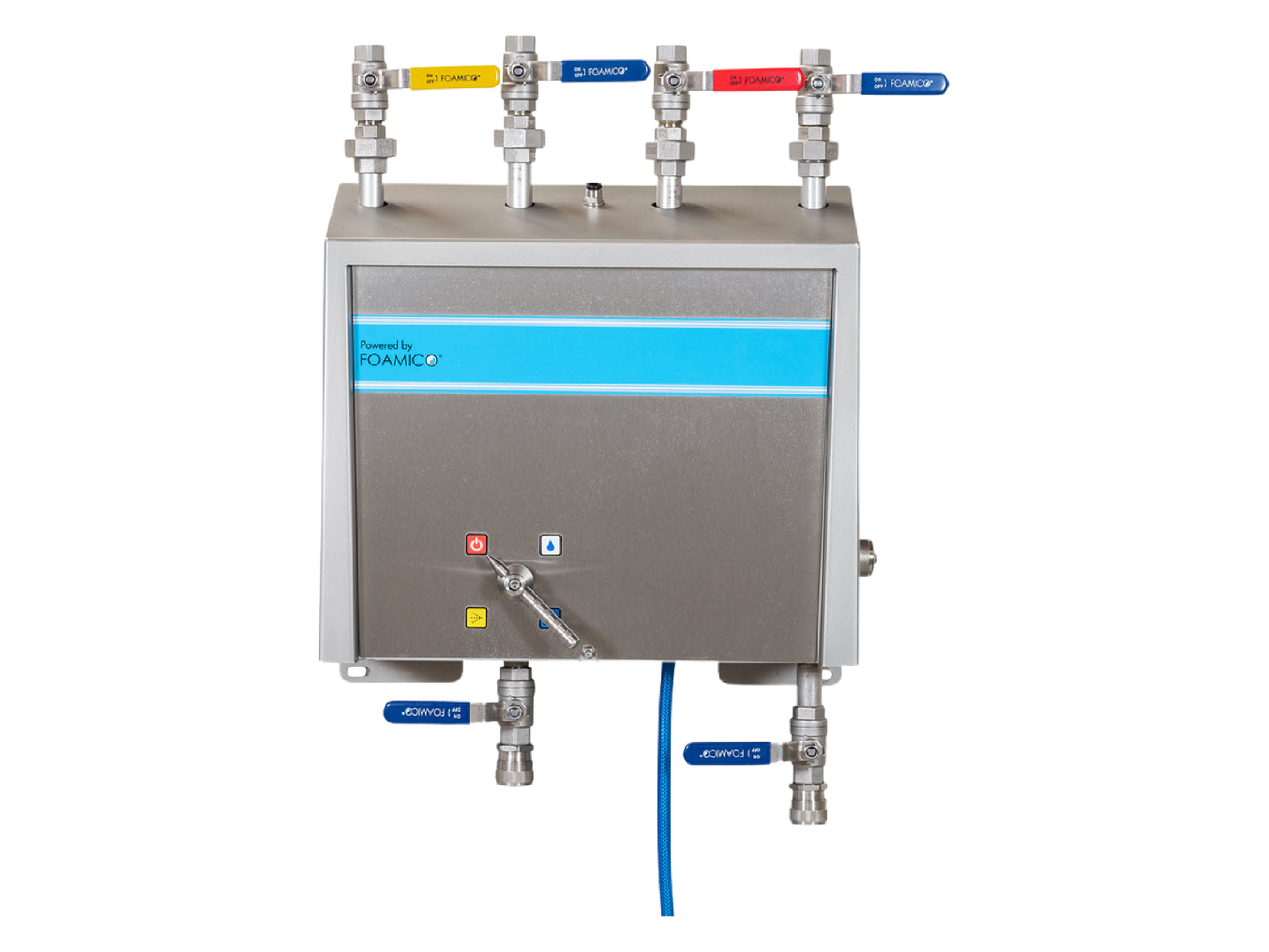

PSU 0127 PB3
Three pre-diluted chemicals and rinse.
Chemicals: 3
Users: 1
Flow: 50 L/min
Pressure: 27 bar
Water inlet: 12 to 25 bar
Chemical inlet: 6 to 8 bar
Weight: 13 kg
Dimensions: 440 x 260 x 200 mm
Item no.: 7013315
Why pre-diluted
No concentrate. On the floor.
The chemicals are mixed centrally, so the Satellite only ever sees the right dilution.
Safer for the team
Nobody handles concentrated chemicals out in production.
Room for one local chemical
The LB model takes one stronger chemical when a process needs it.
FlowGuard as an option
Our patented FlowGuard improves performance and cuts water use.
Mixed in one room.
Clean in every other.
The concentrate stays in the plant room. The Mixing Station blends it with water, and only the ready mix runs out to the Satellites.
- 01Mix centrally. The Mixing Station doses the chemicals by venturi.
- 02Send it out. Ready mixed chemicals run through stainless steel pipes.
- 03Clean with one handle. The right dilution at every Satellite.
The LB model has room for one local chemical next to the two pre-diluted ones, for a process that needs a higher concentration.
Yes. An extra outlet can be added, so two operators clean at the same time.
A Mixing Station for the chemicals, and a Main Station or Booster for the water at 12 to 25 bar.
Not sure which one?
Let's find the right one together.
Tell us which chemicals you use and where. We will tell you which Pre-diluted Satellite fits.
