Pressurised water from a Main Station or a Booster, plus compressed air at 5 to 10 bar for foam.
Baseline Satellite.
The standard Satellite for everyday rinse and foam. Two chemicals, one handle, at 27 or 50 bar.
The range.
Baseline Satellites for two chemicals, on the wall or on a trolley.
Wall

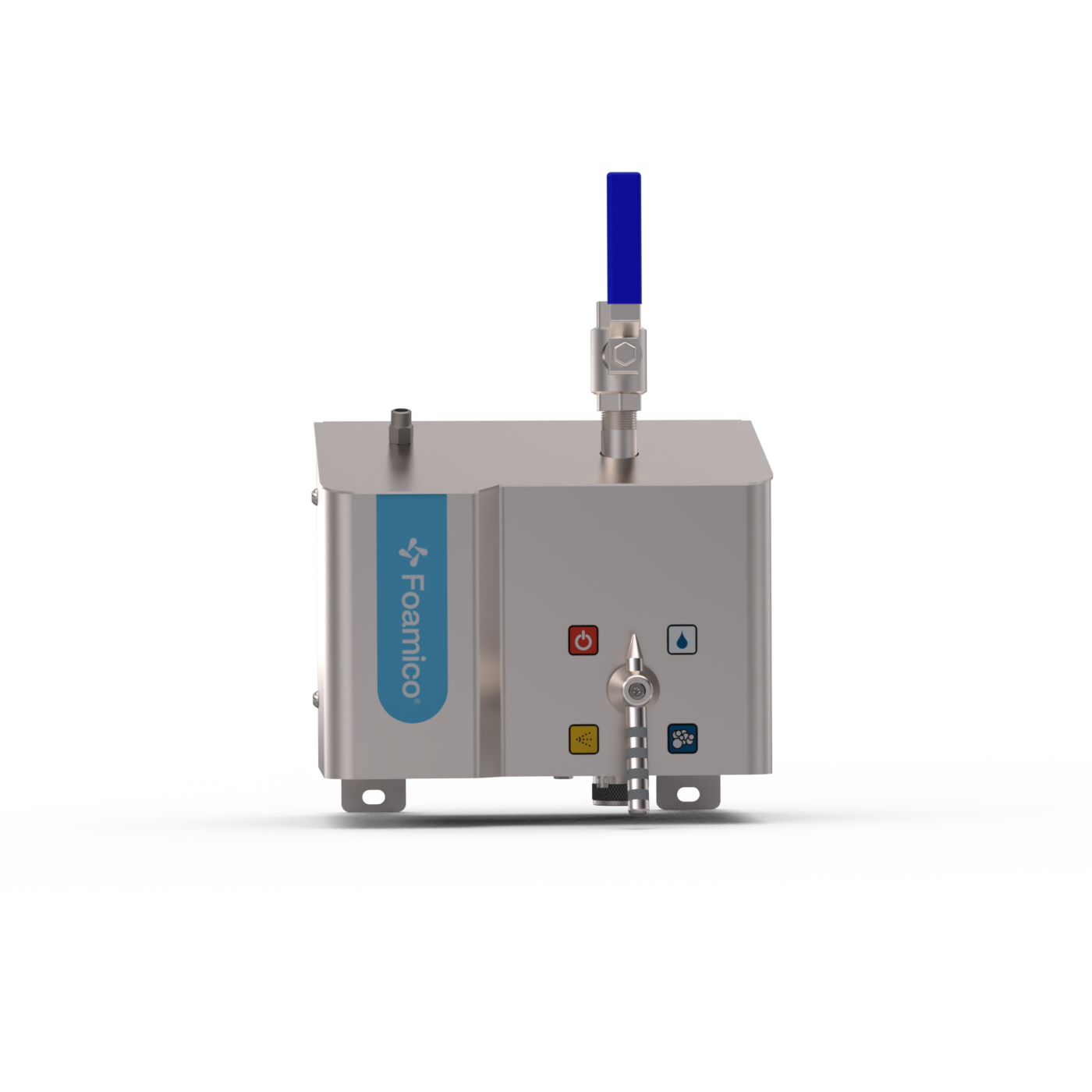

SU Baseline 0127
The everyday Satellite for rinse and foam.
Pressure: 27 bar
Flow: 50 L/min
Chemicals: 2
Users: 1
Wall
SU Baseline 0150
The same Satellite, built for higher pressure.
Pressure: 50 bar
Flow: 50 L/min
Chemicals: 2
Users: 1
One handle.
Every step.
No start button, no air valve, no separate compressor switch. Turn the handle to the icon you need, open the gun, and the station does the rest.
- 01Connect water from your Main Station or Booster, plus power and air for foam.
- 02Attach a hose with a nozzle, or a foam gun.
- 03Turn the handle to rinse or one of the chemicals.
- 04Clean. Open the gun and the pump starts. Close it and it stops.
Rinse
Try it. Turn the handle or tap an icon.
Specifications. Side by side.
Product specifications for both Satellites.
27 bar, two chemicals
SU Baseline 0127
Pump pressure (max.): 27 bar
Water flow (max.): 50 L/min
Chemicals (one outlet): 2
Simultaneous users: 1
Water temperature (max.): 70 °C
Functions: Rinse, foam
Rinsing nozzle: High Impact
Water supply: Main Station or Booster
Mounting: Wall
50 bar, two chemicals
SU Baseline 0150
Pump pressure (max.): 50 bar
Water flow (max.): 50 L/min
Chemicals (one outlet): 2
Simultaneous users: 1
Water temperature (max.): 70 °C
Functions: Rinse, foam
Rinsing nozzle: High Impact
Water supply: Main Station or Booster
Mounting: Wall
One handle.
Three steps.
No start button, no air valve, no separate compressor switch. The station does the thinking, so the operator can focus on the clean.
1ConnectPower, water and chemicals. Plus air on MS models.
2AttachA hose with a nozzle or a foam gun.
3Turn the handlePick water or a chemical. The pump starts when you open the gun.
What does a Satellite need to work?
What do the numbers in the name mean?
The first two digits are the number of users, the last two are the maximum pressure in bar. SU 0127 is one user at 27 bar.
0127 or 0150: which should I choose?
Choose 0150 when the plant needs higher pressure at the nozzle. Everything else is the same.
Can a Satellite be moved around?
Yes. The mobile version is the same Satellite on a trolley, with a holder for the chemical and the nozzles.
Not sure what your plant needs?
