Pressurised water from a Main Station or a Booster, plus compressed air at 5 to 10 bar for foam.
Light Satellite.
The standard Satellite for everyday rinse and foam. One chemical, one handle, at 27 or 50 bar.
The range.
Four Light Satellites for one chemical, on the wall or on a trolley.
Wall

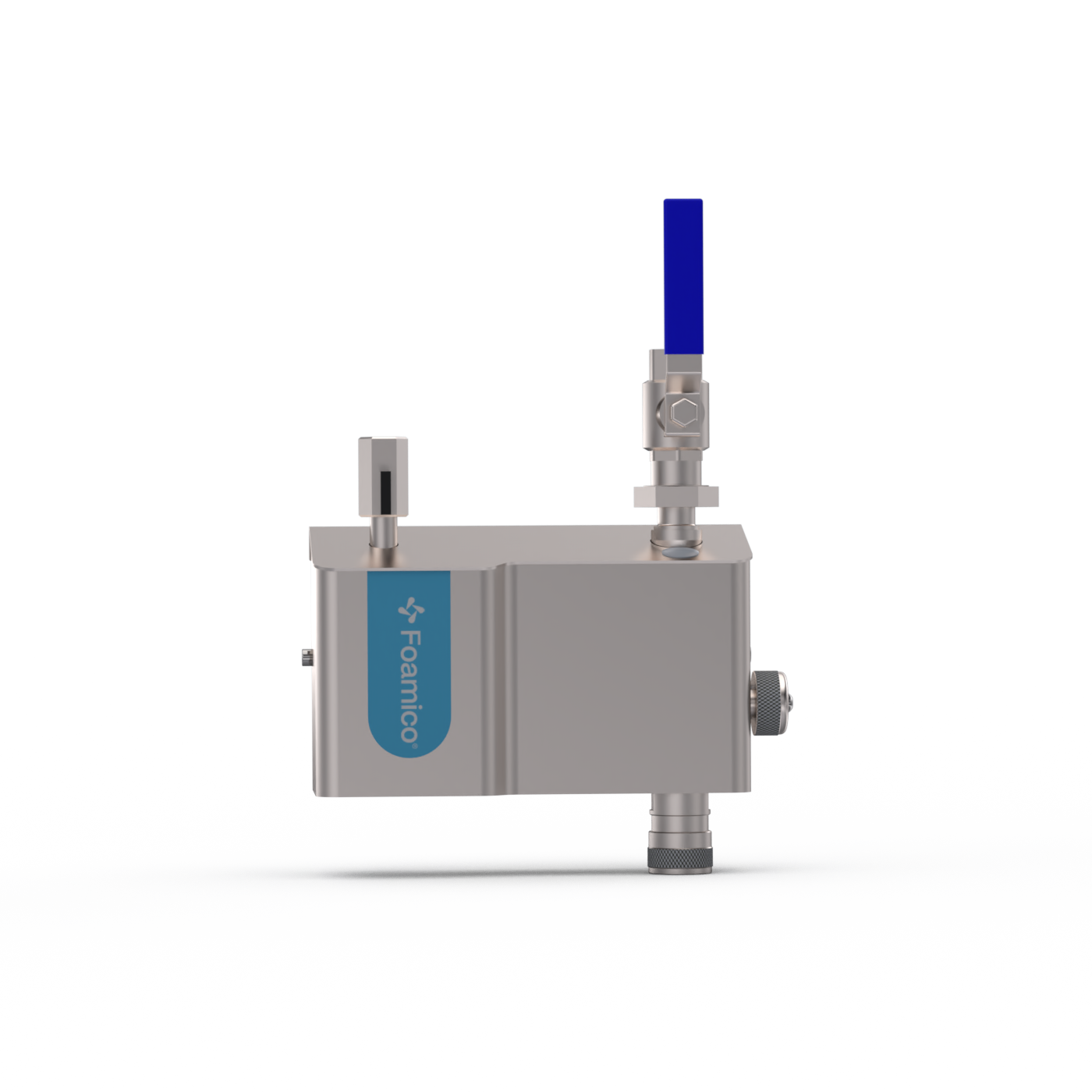

SU 0127 Light
The everyday Satellite for one chemical.
Pressure: 27 bar
Flow: 50 L/min
Chemicals: 1
Users: 1
Wall, Tap water
SU 0110 Light TWP
Runs on tap water, with external air for foam.
Pressure: 2 to 10 bar
Flow: 50 L/min
Chemicals: 1
Users: 1
Wall, Tap water
SU 0110 Light TWP XA
Runs on tap water alone, with no air supply.
Pressure: 2 to 10 bar
Flow: 50 L/min
Chemicals: 1
Users: 1
Trolley

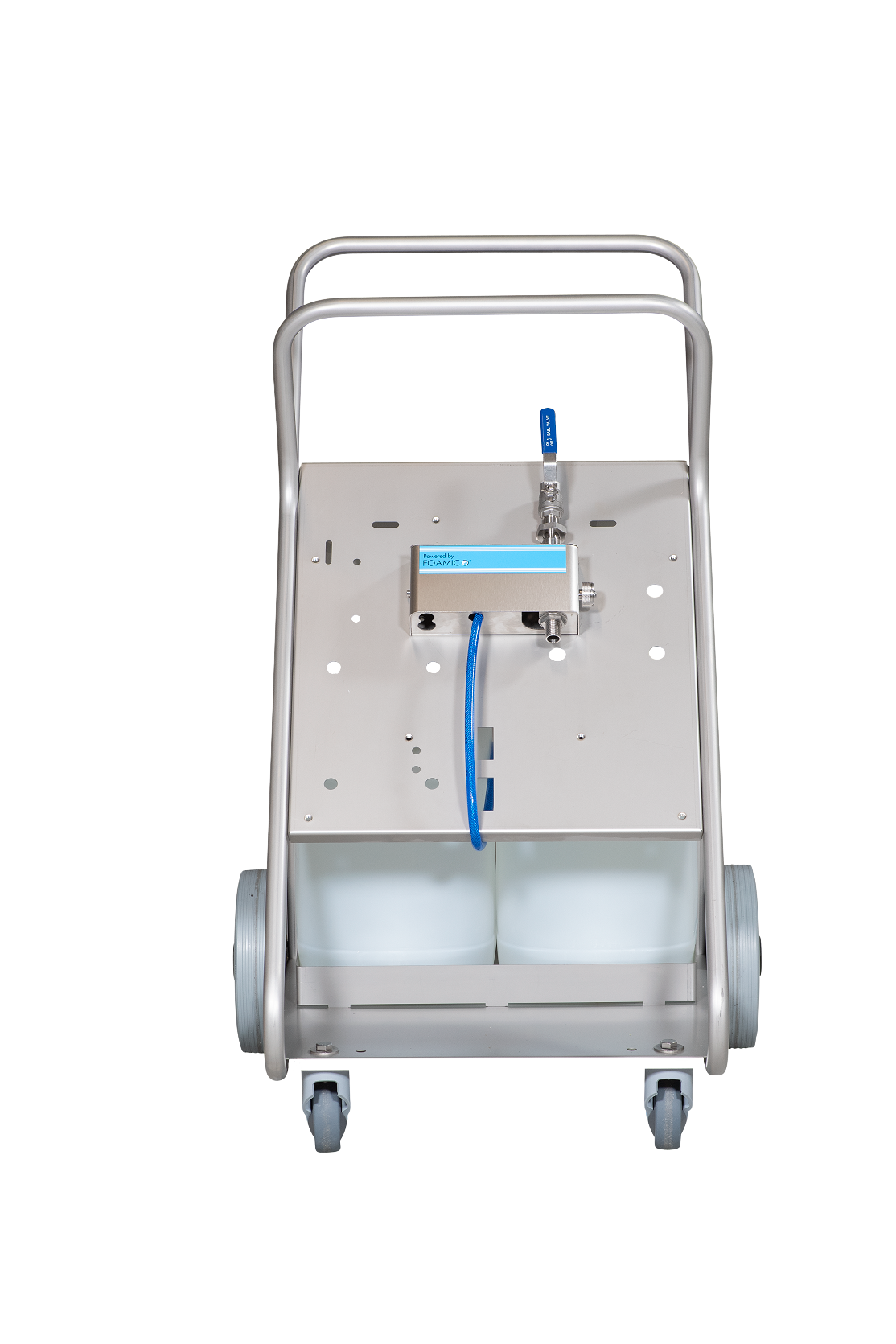

SU 0127 Light Mobile
The Light Satellite on a trolley, with a holder for the chemical and the nozzles.
Pressure: 27 bar
Flow: 50 L/min
Chemicals: 1
Users: 1
One handle.
Every step.
No start button, no air valve, no separate compressor switch. Turn the handle to the icon you need, open the gun, and the station does the rest.
- 01Connect water from the Main Station, Booster or tap, plus air for foam.
- 02Attach a hose with a nozzle, or a foam gun.
- 03Turn the handle to rinse or one of the chemicals.
- 04Clean. Open the gun and the pump starts. Close it and it stops.
Rinse
Try it. Turn the handle or tap an icon.
Specifications. Side by side.
Product specifications for our Light Satellites.
27 bar, one chemical
SU 0127 Light
Inlet pressure: 10 to 27 bar
Water flow (max.): 50 L/min
Chemicals: 1
Simultaneous users: 1
Functions: Rinse, foam
Rinsing nozzle: High Impact
Air supply: 5 to 10 bar
Water supply: Main Station or Booster
Mounting: Wall
Tap water, with air
SU 0110 Light TWP
Inlet pressure: 2 to 10 bar
Water flow (max.): 50 L/min
Chemicals: 1
Simultaneous users: 1
Functions: Rinse, foam
Rinsing nozzle: High Impact
Air supply: 5 to 10 bar
Water supply: Tap water
Mounting: Wall
Tap water, no air
SU 0110 Light TWP XA
Inlet pressure: 2 to 10 bar
Water flow (max.): 50 L/min
Chemicals: 1
Simultaneous users: 1
Functions: Rinse, foam
Rinsing nozzle: 15/30
Air supply: Not needed
Water supply: Tap water
Mounting: Wall
27 bar, on a trolley
SU 0127 Light Mobile
Inlet pressure: 10 to 27 bar
Water flow (max.): 50 L/min
Chemicals: 1
Simultaneous users: 1
Functions: Rinse, foam
Rinsing nozzle: High Impact
Air supply: 5 to 10 bar
Water supply: Main Station or Booster
Mounting: Trolley
One handle.
Three steps.
No start button, no air valve, no separate compressor switch. The station does the thinking, so the operator can focus on the clean.
1ConnectPower, water and chemicals. Plus air on MS models.
2AttachA hose with a nozzle or a foam gun.
3Turn the handlePick water or a chemical. The pump starts when you open the gun.
What does a Satellite need to work?
What do the numbers in the name mean?
The first two digits are the number of users, the last two are the maximum pressure in bar. SU 0127 is one user at 27 bar.
0127 or 0150: which should I choose?
Choose 0150 when the plant needs higher pressure at the nozzle. Everything else is the same.
Can a Satellite be moved around?
Yes. The mobile version is the same Satellite on a trolley, with a holder for the chemical and the nozzles.
Not sure what your plant needs?
