Pressurised water from a Main Station or a Booster, plus compressed air at 5 to 10 bar for foam.
Next Satellite.

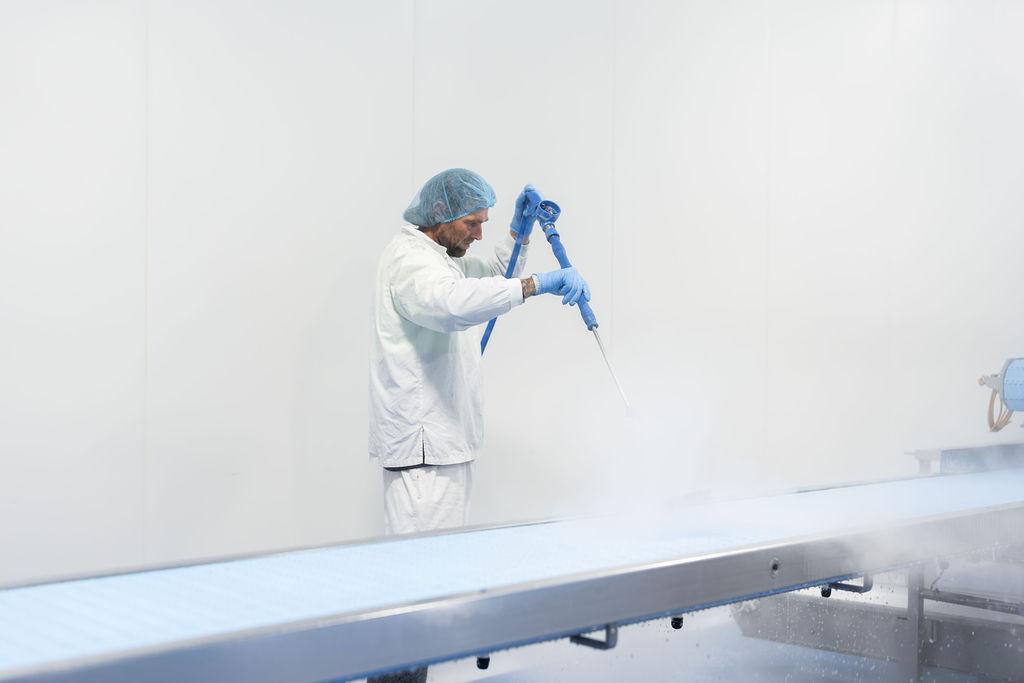

The cleaning point at the line. One handle for rinse and three chemicals, supplied by your Main Station or Booster.
Four Satellites, all with the same Next block.
The range.

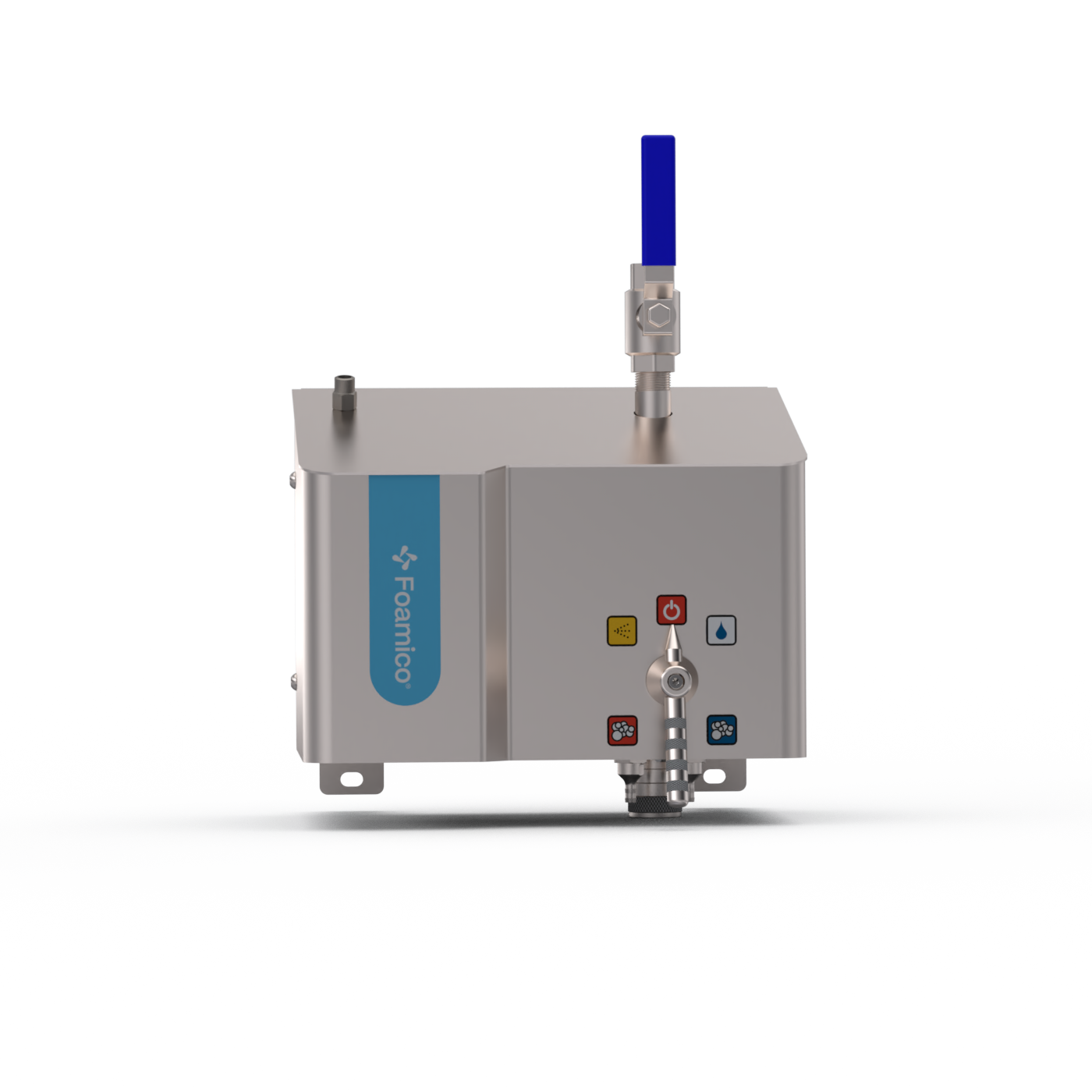

SU NEXT Satellite
Wall mounted, high-grade stainless steel.
SU 0127 Next
Users at the same time: 1
Max. water: 100 L/min
Inlet pressure: 10 to 27 bar
SU 0150 Next
Users at the same time: 1
Max. water: 100 L/min
Inlet pressure: 10 to 50 bar
Dual Block
SU 0227 Next
Users at the same time: 2
Max. water: 2 × 100 L/min
Inlet pressure: 10 to 27 bar
Mobile
SU 0127 Next Mobile
Users at the same time: 1
Max. water: 100 L/min
Inlet pressure: 10 to 27 bar
Same on every Satellite: 3 chemicals and rinse, one outlet · 5 to 10 bar air supply · 150 to 200 L/min air · Stainless steel throughout
Specifications. Side by side.
All four Next Satellites, compared.
27 bar, three chemicals
SU NEXT 0127
Pump pressure (max.): 27 bar
Water flow (max.): 100 L/min
Chemicals (one outlet): 3
Simultaneous users: 1
Water temperature (max.): 70 °C
Functions: Rinse, foam, disinfect
Rinsing nozzle: High Impact
Water supply: Main Station or Booster
Mounting: Wall
50 bar, three chemicals
SU NEXT 0150
Pump pressure (max.): 50 bar
Water flow (max.): 100 L/min
Chemicals (one outlet): 3
Simultaneous users: 1
Water temperature (max.): 70 °C
Functions: Rinse, foam, disinfect
Rinsing nozzle: High Impact
Water supply: Main Station or Booster
Mounting: Wall
Dual Block, two users
SU NEXT 0227
Pump pressure (max.): 27 bar
Water flow (max.): 2 × 100 L/min
Chemicals (one outlet): 3
Simultaneous users: 2
Water temperature (max.): 70 °C
Functions: Rinse, foam, disinfect
Rinsing nozzle: High Impact
Water supply: Main Station or Booster
Mounting: Wall
On a trolley
SU NEXT 0127 Mobile
Pump pressure (max.): 27 bar
Water flow (max.): 100 L/min
Chemicals (one outlet): 3
Simultaneous users: 1
Water temperature (max.): 70 °C
Functions: Rinse, foam, disinfect
Rinsing nozzle: High Impact
Water supply: Main Station or Booster
Mounting: Trolley
One handle.
Three steps.
No start button, no air valve, no separate compressor switch. The station does the thinking, so the operator can focus on the clean.
1ConnectPower, water and chemicals. Plus air on MS models.
2AttachA hose with a nozzle or a foam gun.
3Turn the handlePick water or a chemical. The pump starts when you open the gun.
One handle.
Every step.
No start button, no air valve, no separate compressor switch. Turn the handle to the icon you need, open the gun, and the station does the rest.
- 01Connect water from your Main Station or Booster, plus power and air for foam.
- 02Attach a hose with a nozzle, or a foam gun.
- 03Turn the handle to rinse or one of the chemicals.
- 04Clean. Open the gun and the pump starts. Close it and it stops.
Rinse
Try it. Turn the handle or tap an icon.
What does a Satellite need to work?
What do the numbers in the name mean?
The first two digits are the number of users, the last two are the maximum pressure in bar. SU 0127 is one user at 27 bar.
0127 or 0150: which should I choose?
Choose 0150 when the plant needs higher pressure at the nozzle. Everything else is the same.
Can a Satellite be moved around?
Yes. The mobile version is the same Satellite on a trolley, with a holder for the chemical and the nozzles.
